Liftgate Latch Assembly / Liftgate Unlatch Assembly Connector

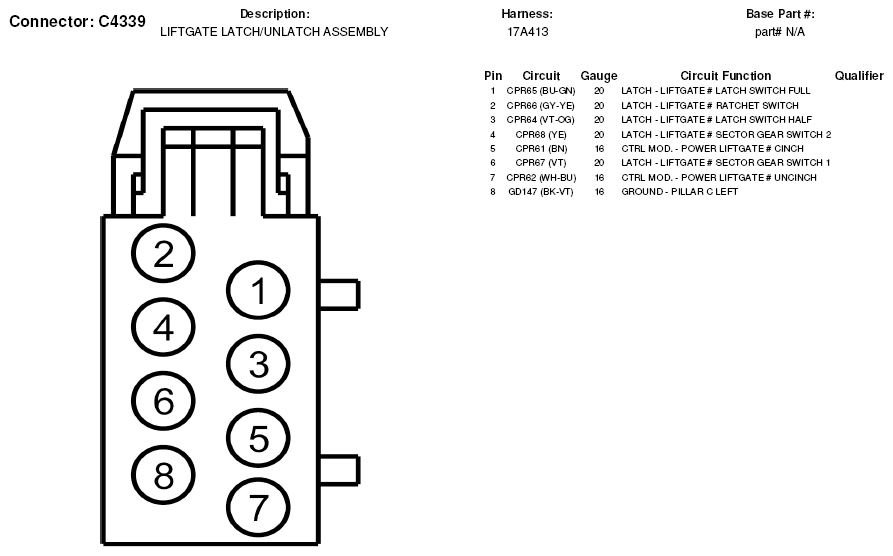

Fig 1: Liftgate Latch Assembly / Liftgate Unlatch Assembly Connector End View (C4339)
