Home >> Mercury >> 2008 >> Sable Base, AWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector Views >> Electronic Hidden Antenna Module Connector

Electronic Hidden Antenna Module Connector

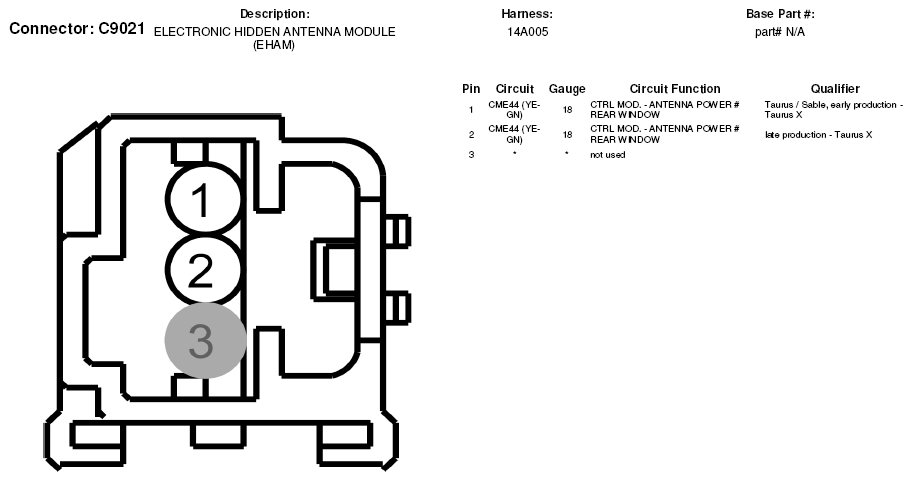

Fig 1: Electronic Hidden Antenna Module Connector End View (C9021)

G05603557
