Driver Side Front Seat Control Switch Connector
Driver Side Front Seat Control Switch Connector

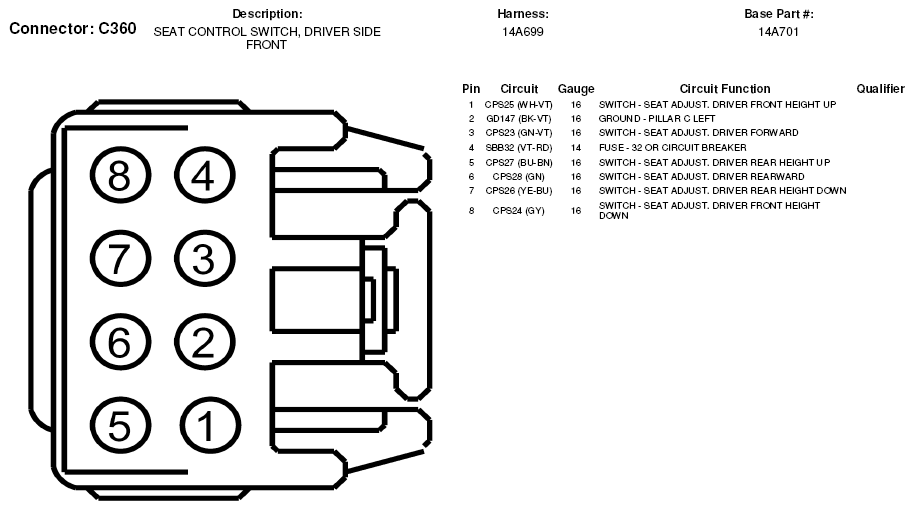

Fig 1: Driver Side Front Seat Control Switch Connector End View (C360)

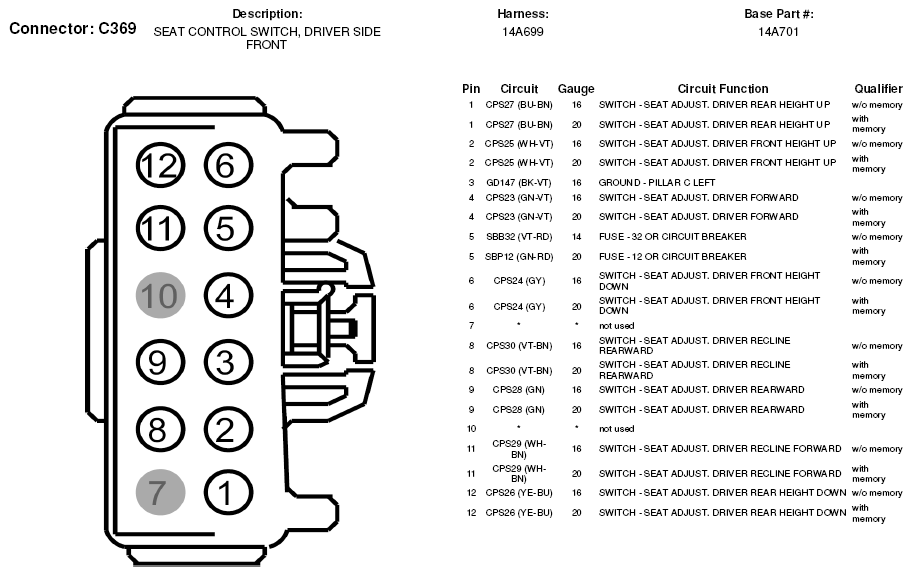

Fig 2: Driver Side Front Seat Control Switch Connector End View (C369)
