Fuel Tank Pressure (FTP) Sensor

The FTP sensor or inline FTP sensor is used to measure the fuel tank pressure.

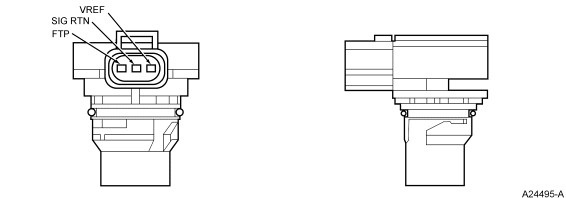

Fig 1: Fuel Tank Pressure (FTP) Sensor
GF0001453Courtesy of FORD MOTOR CO.

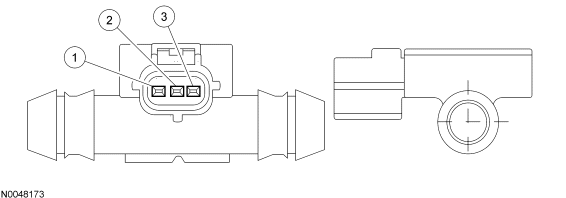

Fig 2: In-Line Fuel Tank Pressure (FTP) Sensor
GF0001454Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - VREF
2 - SIG RTN
3 - FTP
