Home >> Mercury >> 2008 >> Sable Base, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Wiring Diagrams >> OEM Connector End Views >> Connector Views >> Steering Angle Sensor Module Connector

Steering Angle Sensor Module Connector

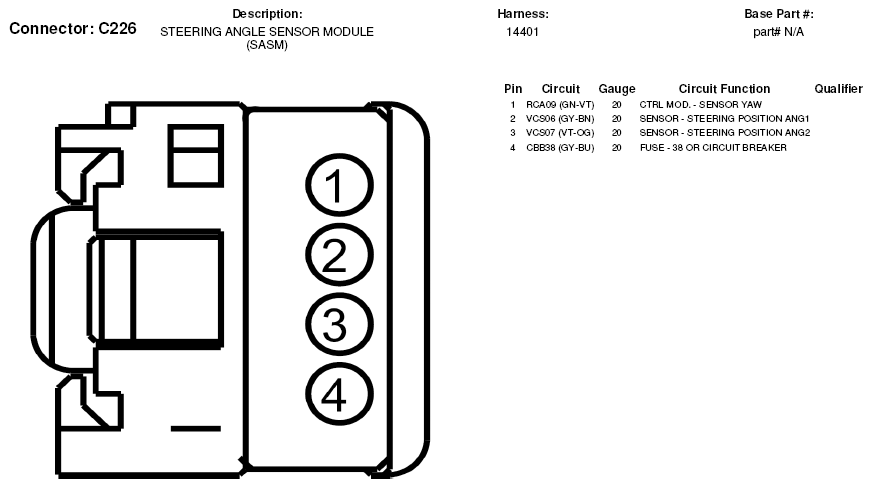

Fig 1: Steering Angle Sensor Module Connector End View (C226)

G05603297
