Driver Seat Module (DSM): Notes

Special Tools

Illustration	Tool Name	Tool Number
	Heavy-Duty Riveter	501-D011 (D80L-23200-A)

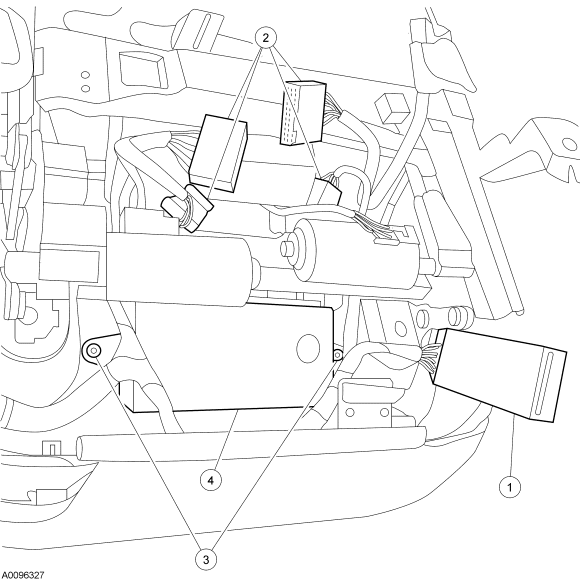

Fig 1: Exploded View Of Driver Seat Module (DSM)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14C724	Climate controlled seat module (if equipped)
2	-	Driver seat module (DSM) electrical connectors (part of 14A699)
3	-	DSM rivets (2 required)
4	14C708	DSM
