Transmission Control (TC) Switch
>>
Notes
Transmission Control (TC) Switch: Notes

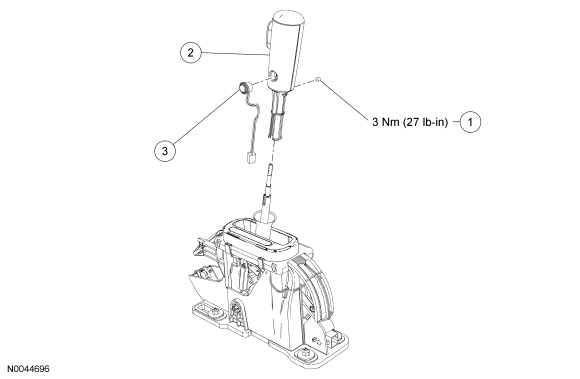

Fig 1: Exploded View Of Transmission Control (TC) Switch With Torque Specification
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
-
Selector lever knob set screw
2
7213
Selector lever knob
3
7G550
Transmission control (TC) switch
