Selector Lever: Notes

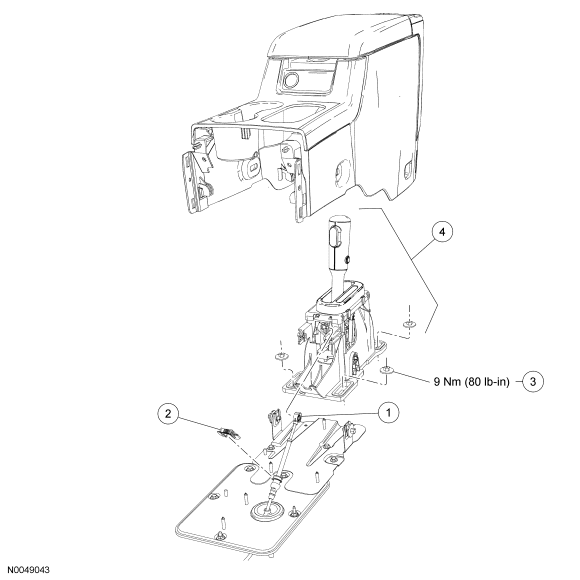

Fig 1: Exploded View Of Selector Lever With Torque Specification
GF0027528Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Selector lever cable
2 7H181 Selector lever-to-cable clip
3 W710618 Selector lever housing nut
4 7210 Selector lever assembly
