Selector Lever Cable: Notes

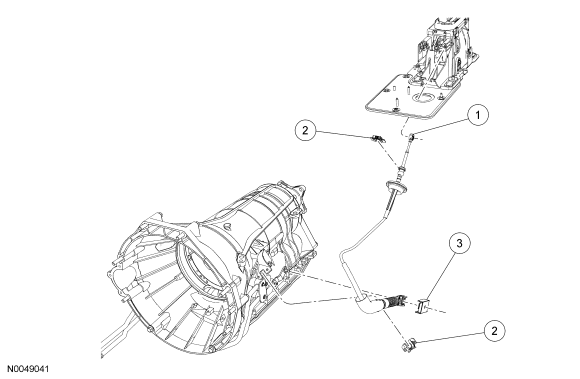

Fig 1: Exploded View Of Selector Lever Cable - Vehicles Equipped With A 6R60 Transmission
GF0027519Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Selector lever cable
2 7H181 Selector lever-to-cable clips
3 7A434 Selector lever cable shield

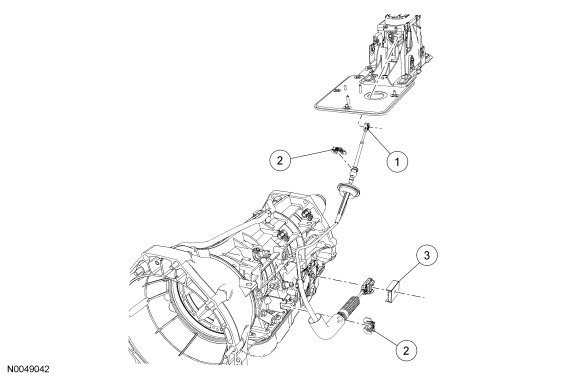

Fig 2: Exploded View Of Selector Lever Cable - Vehicles Equipped With A 5R55S Transmission
GF0027520Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Selector lever cable
2 7H181 Selector lever-to-cable clips
3 7A434 Selector lever cable shield
