Throttle Position (TP) Sensor: Notes

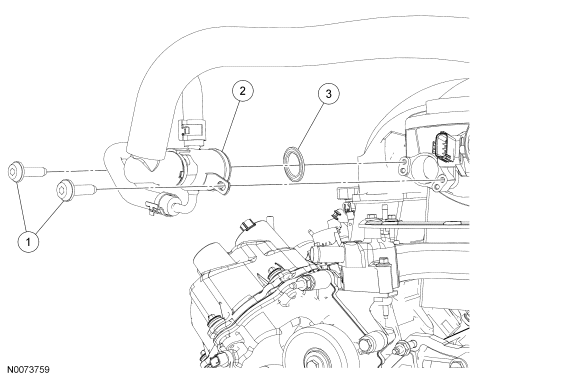

Fig 1: Exploded View Of Heated PCV Fitting
GF0027102Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W506975 Heated PCV fitting bolts
2 9A474 Heated PCV fitting
3 - Heated PCV fitting O-ring seal
Fig 2: Exploded View Of Throttle Position TP Sensor With Torque Specifications
GF0000707Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Throttle position (TP) sensor electrical connector
2 W707535 TP screw (2 required)
3 9E928 TP sensor
