Wheel Speed Sensor - Front: Notes

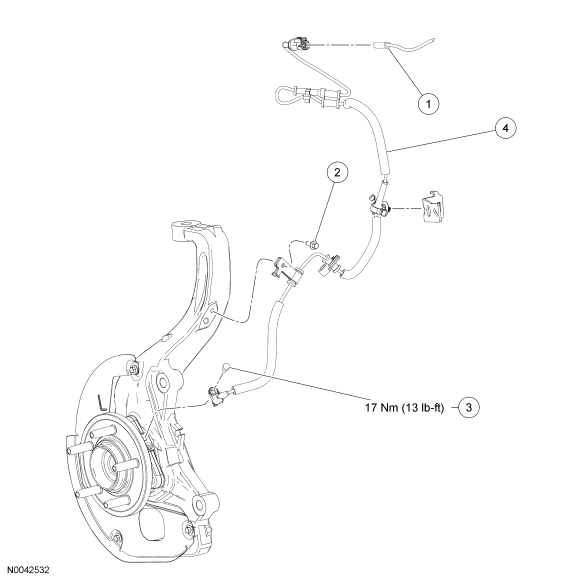

Fig 1: Exploded View Of Front Wheel Speed Sensor With Torque Specification
GF0027326Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14398 Wheel speed sensor electrical connector
2 - Wheel speed sensor harness bolt
3 - Wheel speed sensor bolt (part of 2C204)
4 2C204 Wheel speed sensor
