Steering Wheel Rotation Sensor: Notes

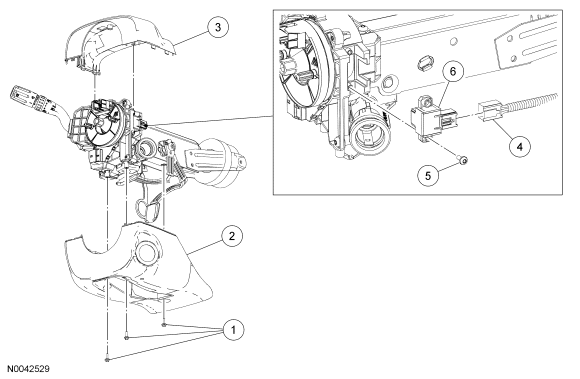

Fig 1: Exploded View Of Steering Wheel Rotation Sensor

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707658	Lower steering column cover bolts (3 required)
2	3F914	Lower steering column cover
3	3F914	Upper steering column cover
4	-	Steering wheel rotation sensor electrical connector (part of 14401)
5	N807493	Steering wheel rotation sensor bolt (2 required)
6	3F818	Steering wheel rotation sensor
