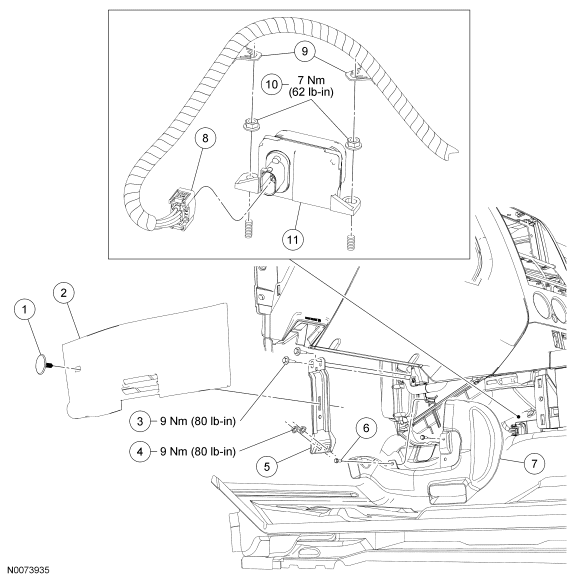

| 1 |
31172 |
Pin-type retainer |
| 2 |
04608 |
LH floor console finish panel |
| 3 |
W707491 |
LH instrument panel brace bolt (2 required) |
| 4 |
W707137 |
LH instrument panel brace nut (2 required) |
| 5 |
044F48 |
LH instrument panel brace |
| 6 |
W707281 |
LH floor heater duct bolt |
| 7 |
18C433A |
LH floor heater duct |
| 8 |
- |
Stability control sensor cluster electrical connector (part of 2C011) |
| 9 |
- |
Stability control sensor cluster harness retainers (part of 2C011) |
| 10 |
W700101 |
Stability control sensor cluster bracket nuts (2 required) |
| 11 |
3C187 |
Stability control sensor cluster |
