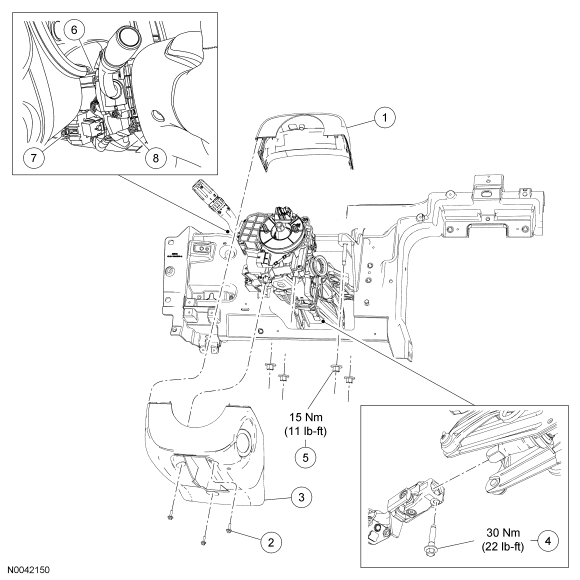

Steering Column: Notes
NOTE:
Steering wheel is removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 3F914 | Upper steering column shroud |
| 2 | W707658 | Lower steering column shroud screw (3 required) |
| 3 | 3F914 | Lower steering column shroud |
| 4 | N808684 | Upper steering column shaft bolt |
| 5 | N806423 | Steering column support bracket nut (4 required) |
| 6 | - | Ignition switch electrical connector |
| 7 | - | Multi-function switch electrical connector |
| 8 | - | Clockspring electrical connector |
