Knock Sensor (KS): Notes

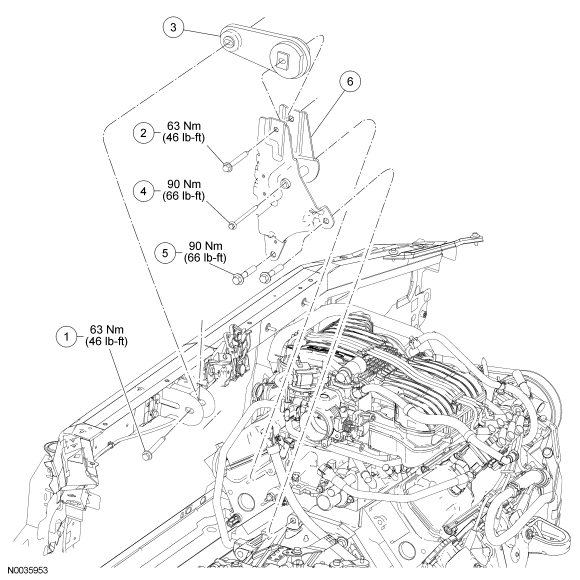

Fig 1: Exploded View Of Engine Roll Restrictor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W560727	Front engine roll restrictor bolt
2	W560727	Rear engine roll restrictor bolt
3	6F050	Engine roll restrictor
4	N606551	Upper engine roll restrictor bracket bolt
5	N606083	Lower engine roll restrictor bracket bolt (2 required)
6	6F055	Engine roll restrictor bracket

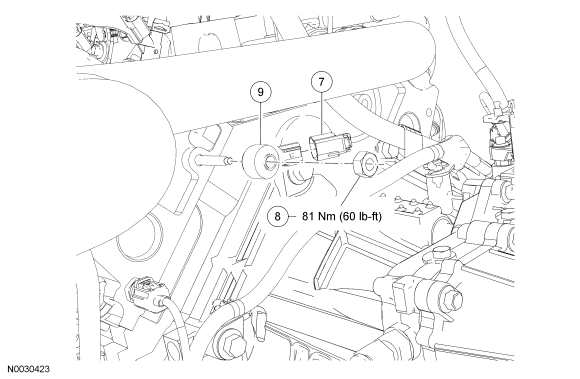

Fig 2: Exploded View Of Knock Sensor KS With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
7	14A464	Knock sensor (KS) electrical connector (part of 12B637)
8	N804758	KS retaining nut
9	12A699	KS
