Idle Air Control (IAC) Valve: Notes

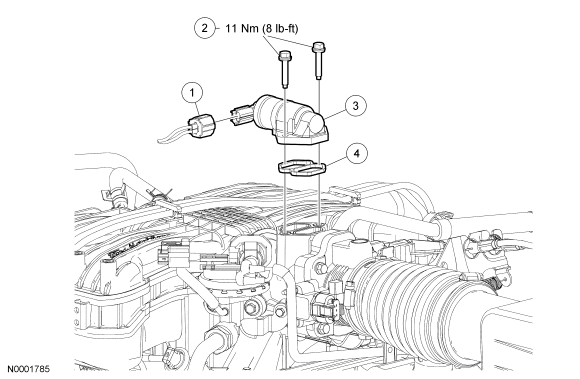

Fig 1: Exploded View Of Idle Air Control IAC Valve With Torque Specifications
GF0033270Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Idle air control (IAC) valve electrical connector (part of 12B637)
2 W701669-S IAC valve bolts (2 required)
3 9F715 IAC valve
4 9F670 IAC valve gasket
