Crankshaft Position (CKP) Sensor: Notes

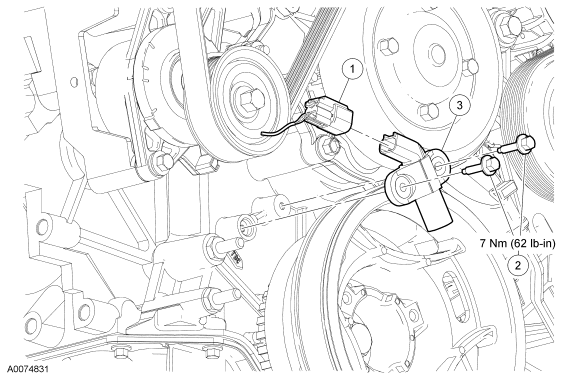

Fig 1: Exploded View Of Crankshaft Position CKP Sensor With Torque Specifications
GF0033265Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Crankshaft position (CKP) sensor electrical connector (part of 12B637)
2 W705398-S CKP sensor bolts (2 required)
3 6C315 CKP sensor
