Block Heater: Notes

Material

Item Specification
Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only)
VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color)		 WSS-M97B51-A1

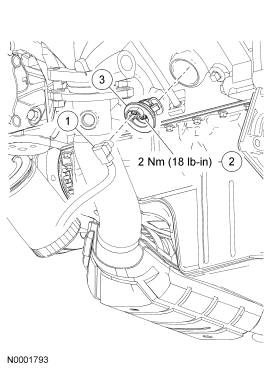

Fig 1: Exploded View Of Block Heater With Torque Specifications
GF0033214Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Block heater electrical connector
2 - Block heater retaining screw
3 - Block heater
