Removal And Installation: Clock: Notes

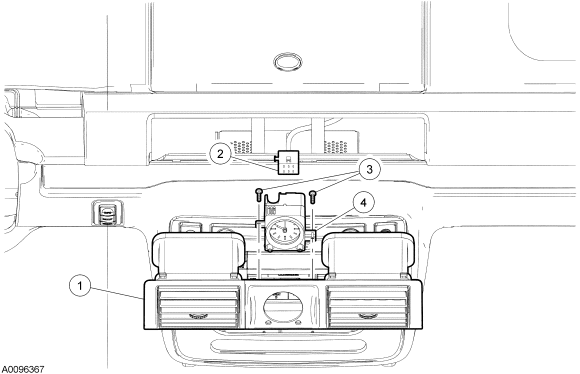

Fig 1: Exploded View Of Clock
GF0033813Courtesy of FORD MOTOR CO.
Item Part Number Description
1 19893 Center register panel
2 - Clock electrical connector (part of 14401)
3 - Screws (2 required)
4 15000 Clock
