Floor Console: Notes

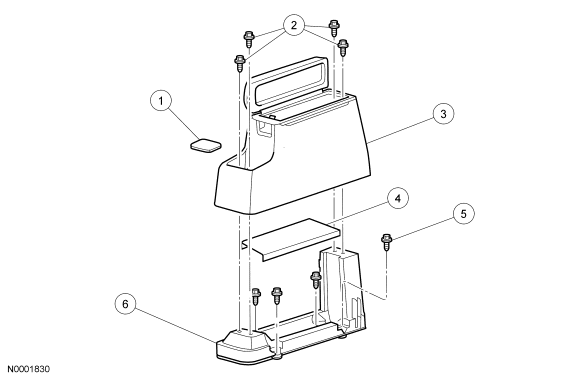

Fig 1: Exploded View Of Floor Console
GF0032762Courtesy of FORD MOTOR CO.
Item Part Number Description
1 046B76 Floor console mat
2 N807729 Floor console screws (4 required)
3 045A06 Floor console bin
4 045M24 Floor console gasket/mat (part of 045A15)
5 W708311 Floor console bracket bolt (4 required)
6 045W34 Floor console bracket assembly
