Instrument Cluster: Notes

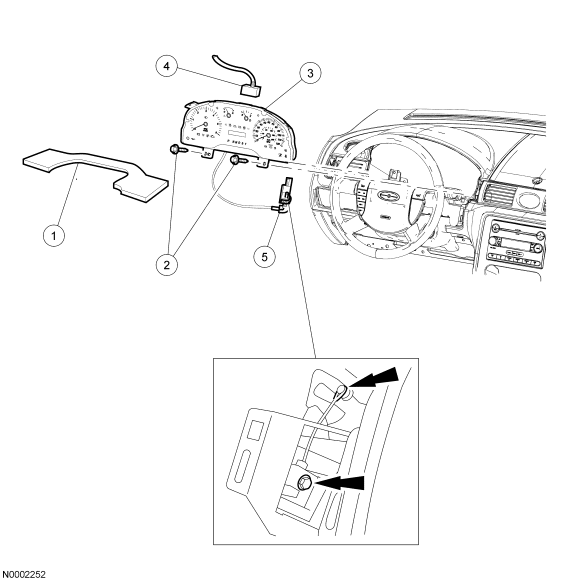

Fig 1: Exploded View Of Instrument Cluster
GF0033797Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3022-3010 Instrument cluster finish panel
2 700390 Instrument cluster screws (2 required)
3 10849 Instrument cluster
4 - Instrument cluster electrical connector (part of 14401)
5 - Transmission range indicator
