Audio Unit: Notes

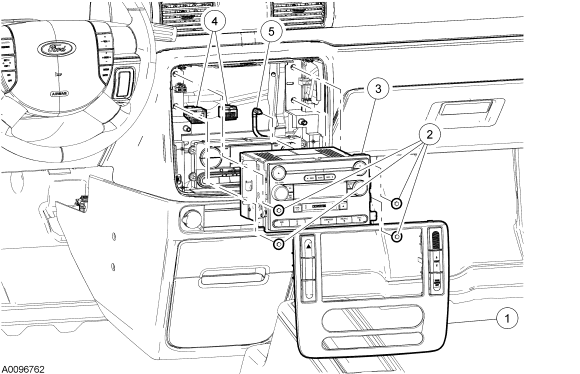

Fig 1: Exploded View Of Audio Unit
GF0033866Courtesy of FORD MOTOR CO.
Item Part Number Description
1 1704608 Instrument panel center finish panel
2 N808720 Audio unit screws (4 required)
3 18C868 Audio unit
4 14401 Electrical connectors
5 18812 Antenna lead-in cable
