Side Lamp Connector
Side Lamp Connector

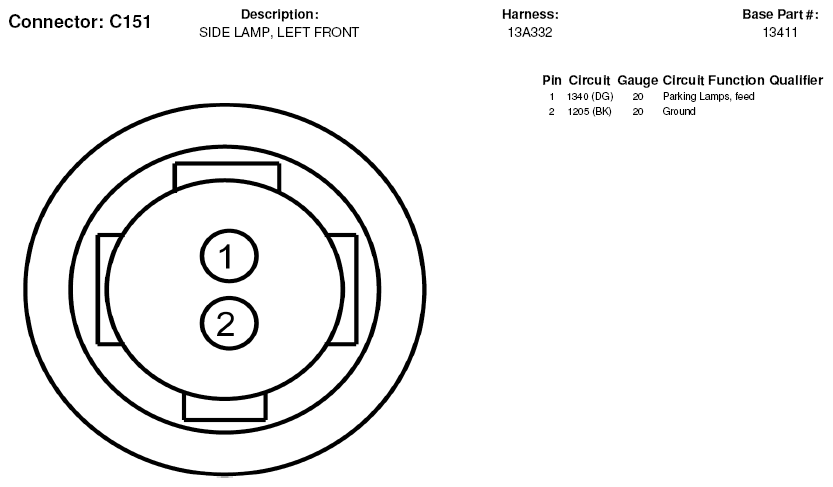

Fig 1: Side Lamp Connector End View (C151)
Courtesy of FORD MOTOR CO.

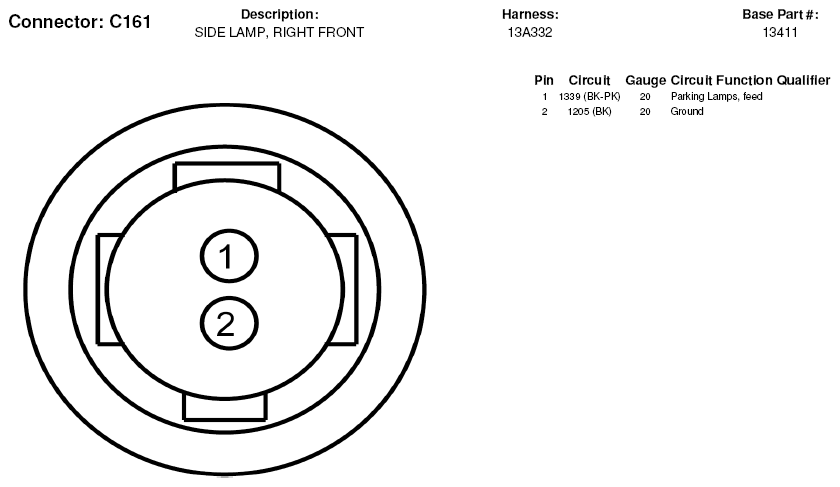

Fig 2: Side Lamp Connector End View (C161)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
