Rear Integrated Control Panel Connector

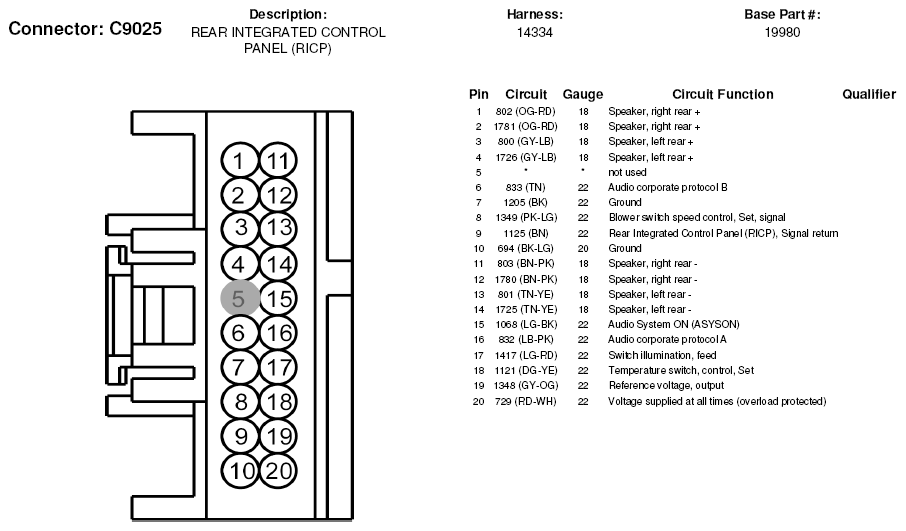

Fig 1: Rear Integrated Control Panel Connector End View (C9025)

G05181757

Courtesy of FORD MOTOR CO.
