Power Window Switch Connector

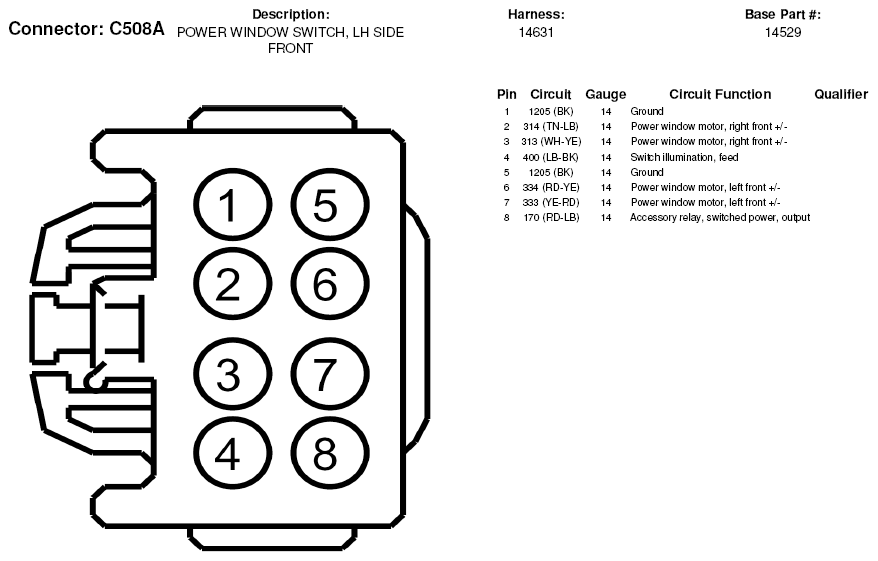

Fig 1: Power Window Switch Connector End View (C508A)

G05181589

Courtesy of FORD MOTOR CO.

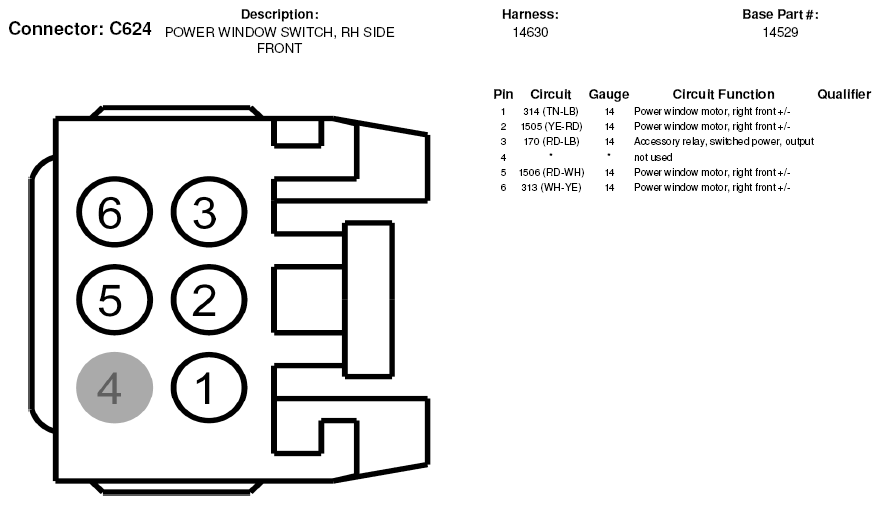

Fig 2: Power Window Switch Connector End View (C624)

G05181606

Courtesy of FORD MOTOR CO.
