Power Quarter Window Switch Connector

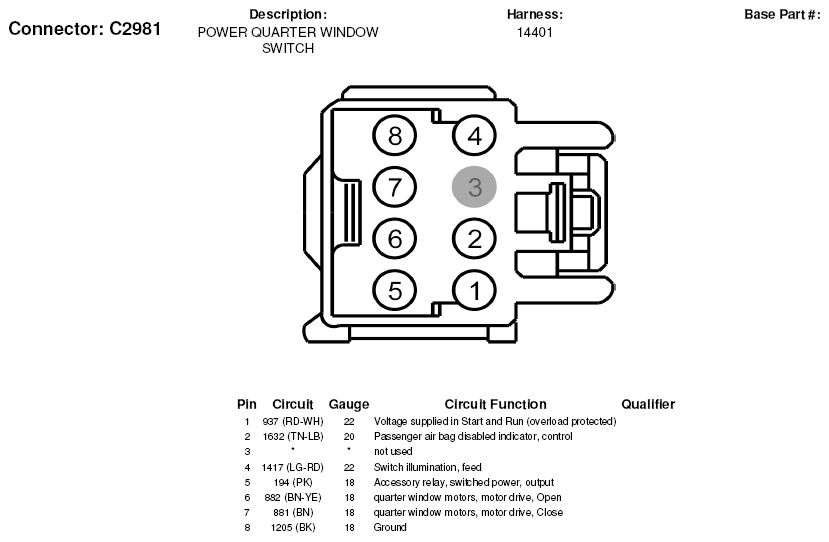

Fig 1: Power Quarter Window Switch Connector End View (C2981)

G05181701

Courtesy of FORD MOTOR CO.
