Liftgate Drive Motor Assembly Connector

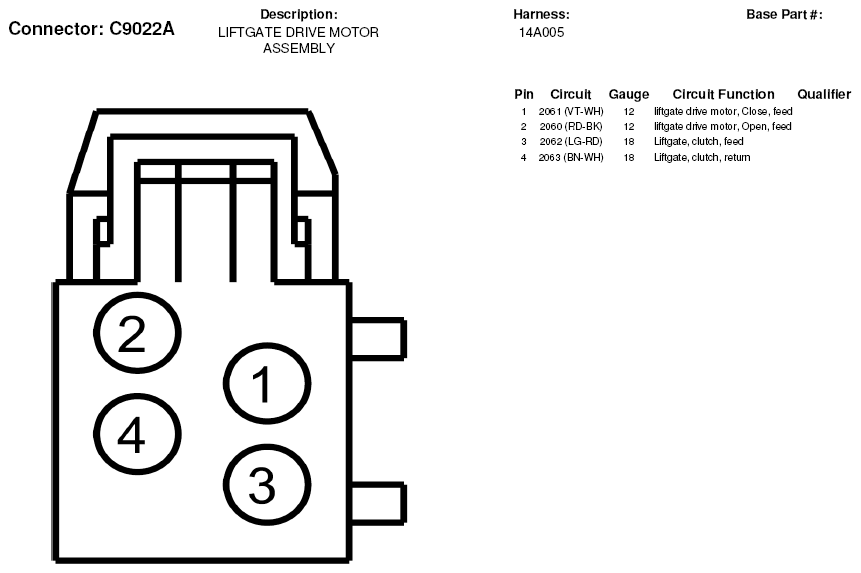

Fig 1: Liftgate Drive Motor Assembly Connector End View (C9022A)
G05181751Courtesy of FORD MOTOR CO.

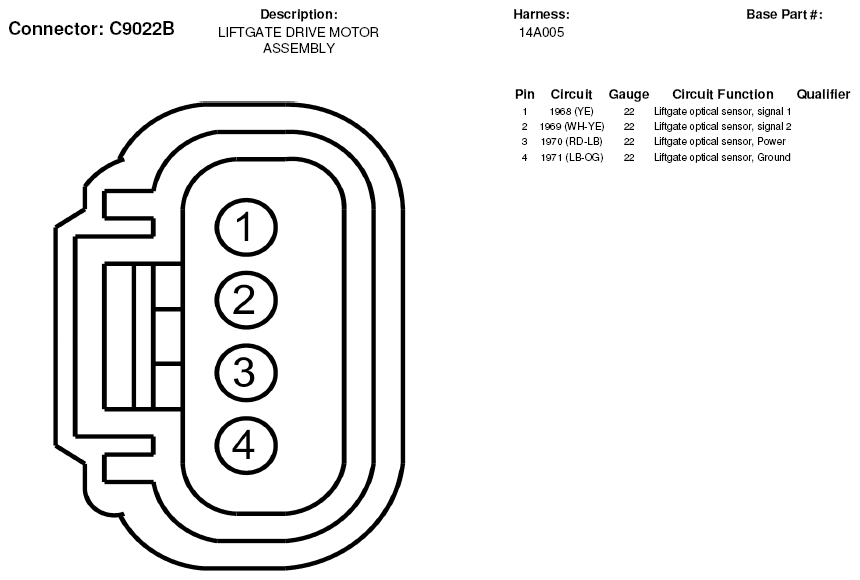

Fig 2: Liftgate Drive Motor Assembly Connector End View (C9022B)
G05181752Courtesy of FORD MOTOR CO.

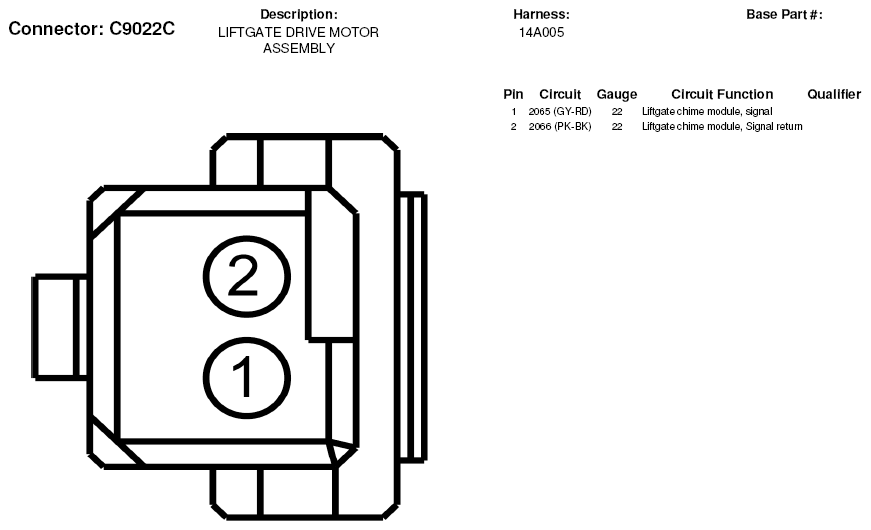

Fig 3: Liftgate Drive Motor Assembly Connector End View (C9022C)
G05181753Courtesy of FORD MOTOR CO.
