Inline Connectors

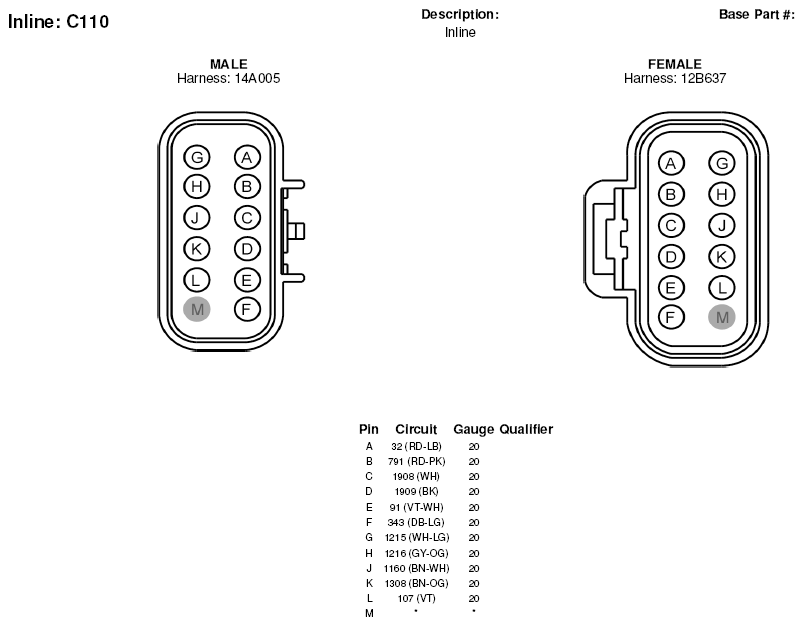

Fig 1: Inline Connector End View (C110)

G05181443

Courtesy of FORD MOTOR CO.

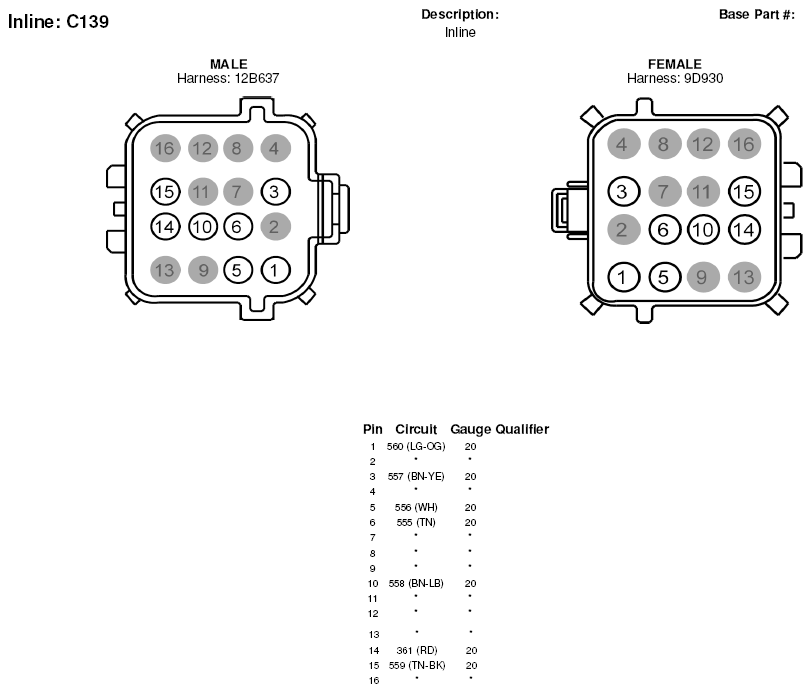

Fig 2: Inline Connector End View (C139)

G05181457

Courtesy of FORD MOTOR CO.

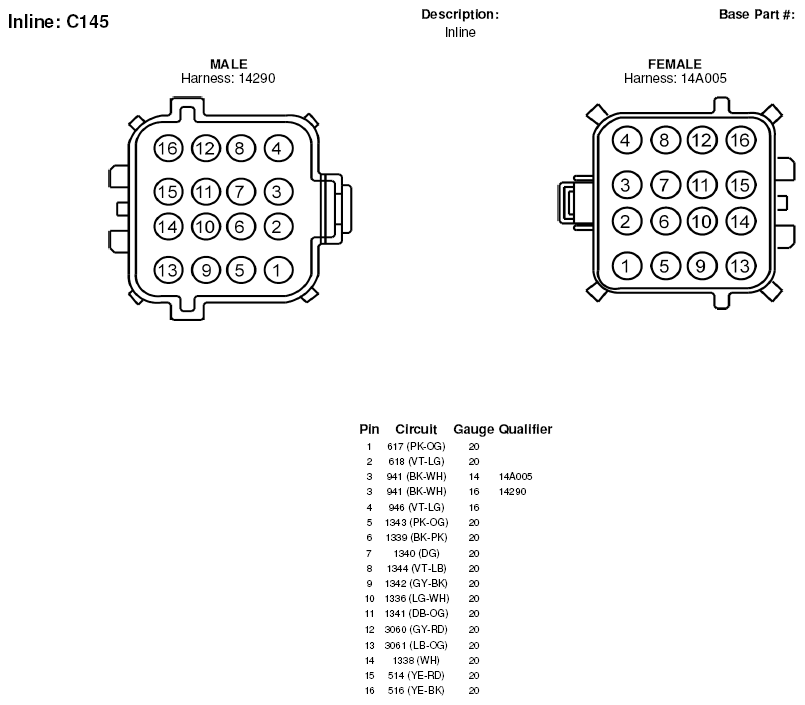

Fig 3: Inline Connector End View (C145)

G05181461

Courtesy of FORD MOTOR CO.

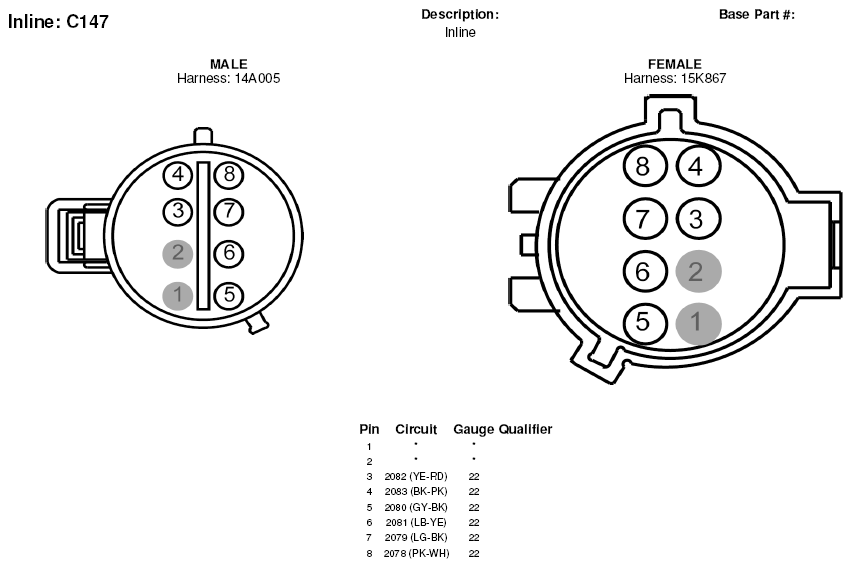

Fig 4: Inline Connector End View (C147)

G05181462

Courtesy of FORD MOTOR CO.

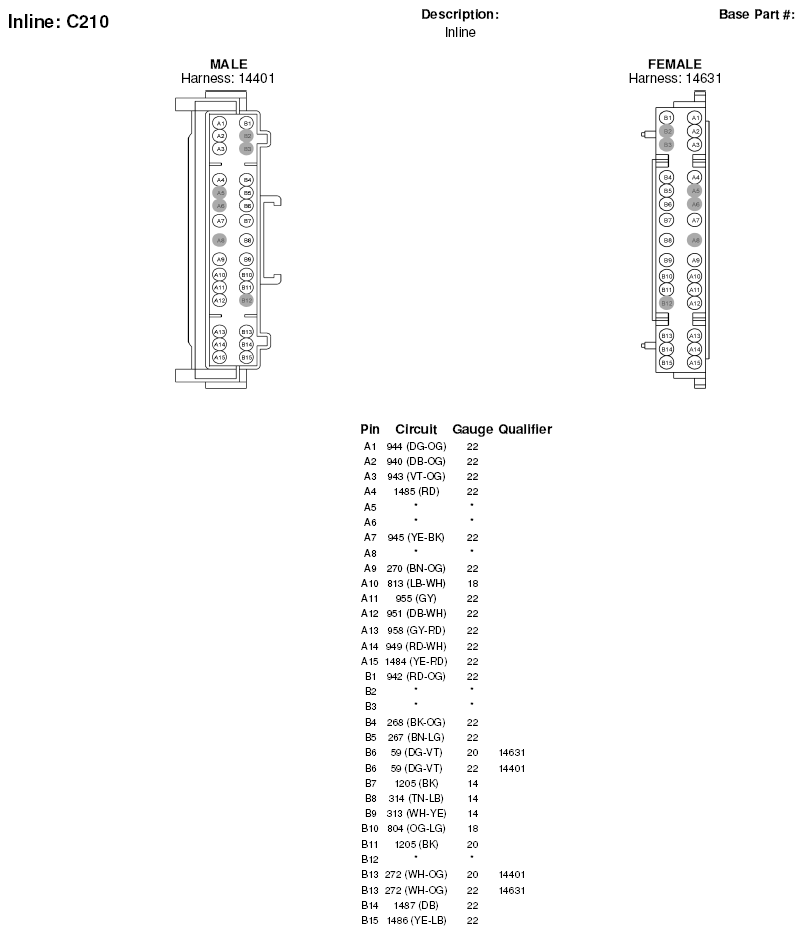

Fig 5: Inline Connector End View (C210)

G05181494

Courtesy of FORD MOTOR CO.

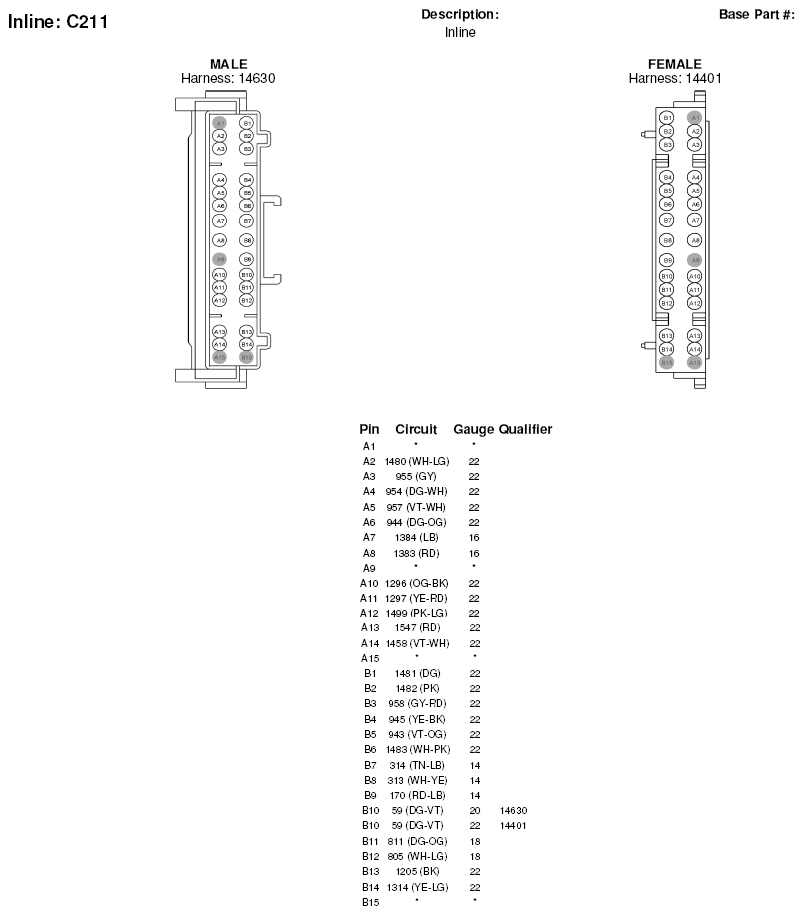

Fig 6: Inline Connector End View (C211)

G05181495

Courtesy of FORD MOTOR CO.

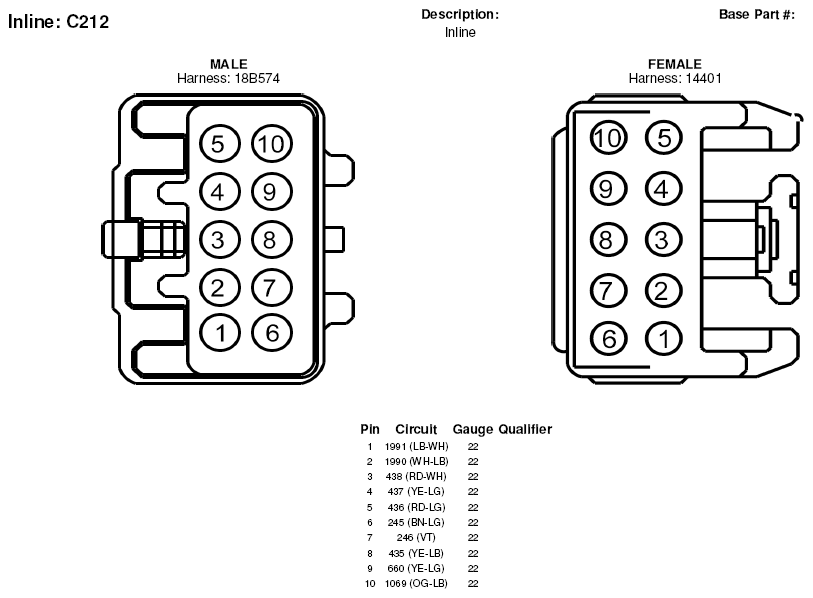

Fig 7: Inline Connector End View (C212)

G05181496

Courtesy of FORD MOTOR CO.

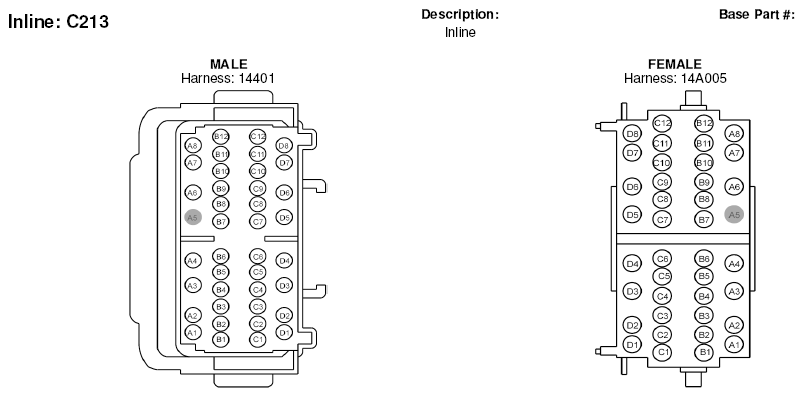

Fig 8: Inline Connector End View (C213) (1 Of 2)

G05181497

Courtesy of FORD MOTOR CO.

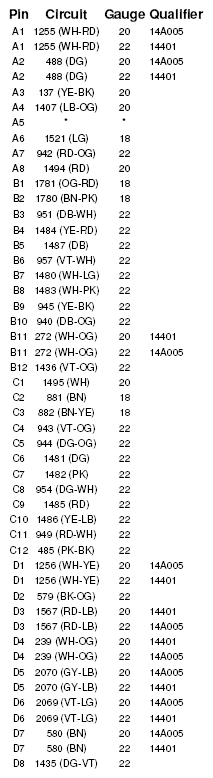

Fig 9: Inline Connector End View (C213) (2 Of 2)

G05181498

Courtesy of FORD MOTOR CO.

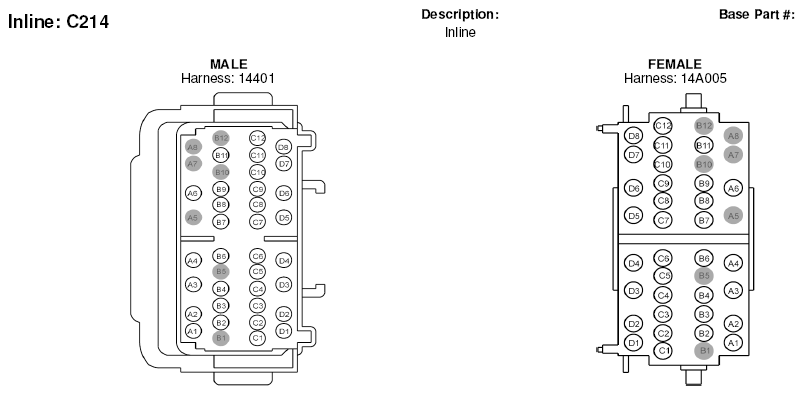

Fig 10: Inline Connector End View (C214) (1 Of 2)

G05181499

Courtesy of FORD MOTOR CO.

Fig 11: Inline Connector End View (C214) (2 Of 2)

G05181500

Courtesy of FORD MOTOR CO.

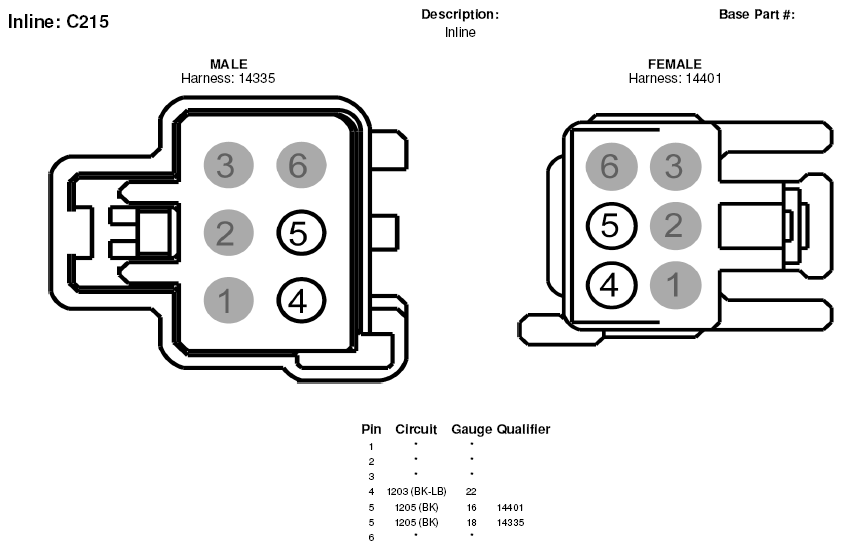

Fig 12: Inline Connector End View (C215)

G05181501

Courtesy of FORD MOTOR CO.

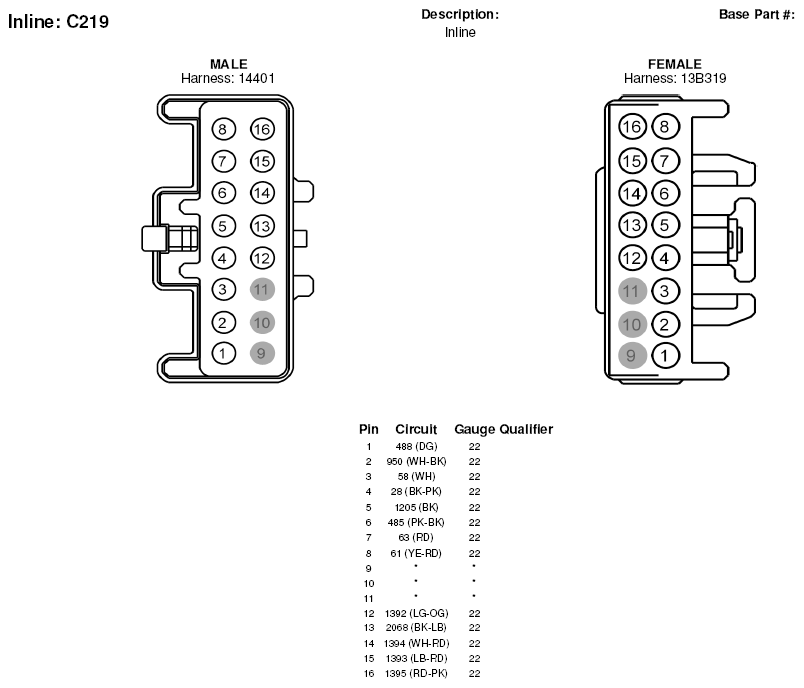

Fig 13: Inline Connector End View (C219)

G05181504

Courtesy of FORD MOTOR CO.

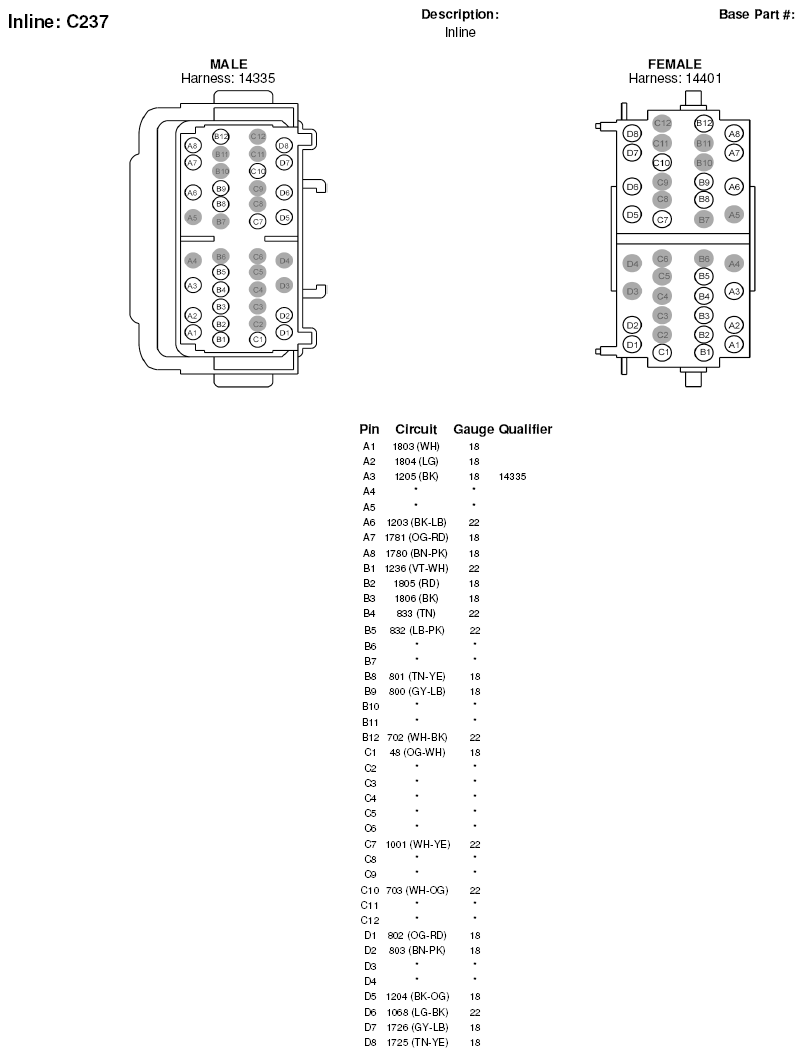

Fig 14: Inline Connector End View (C237)

G05181511

Courtesy of FORD MOTOR CO.

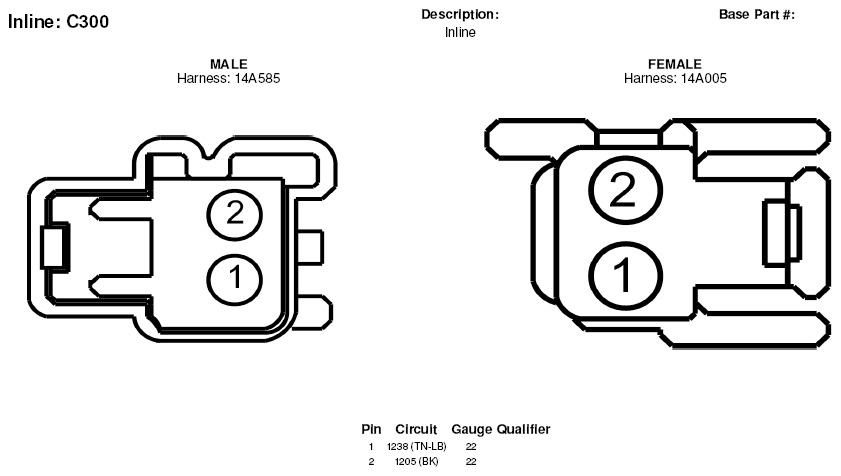

Fig 15: Inline Connector End View (C300)

G05181529

Courtesy of FORD MOTOR CO.

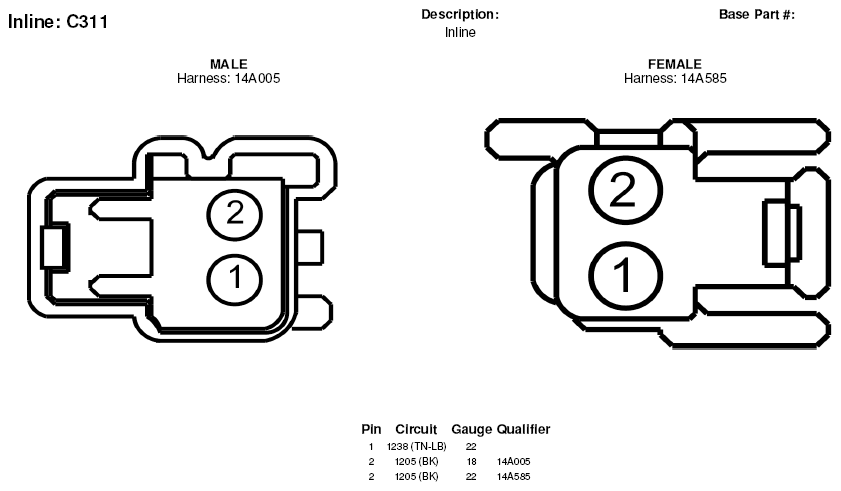

Fig 16: Inline Connector End View (C311)

G05181534

Courtesy of FORD MOTOR CO.

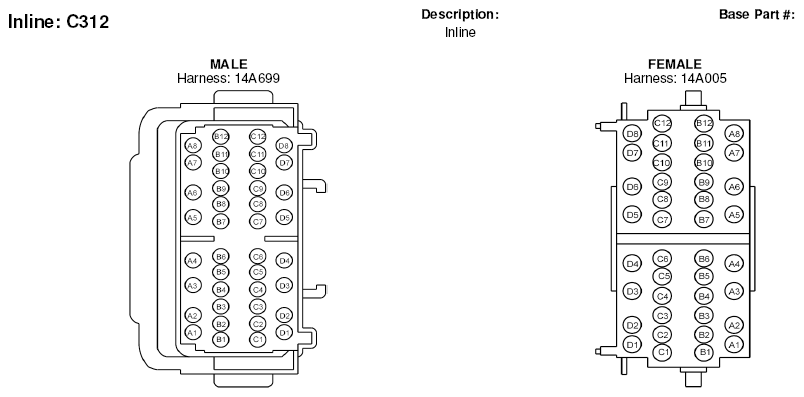

Fig 17: Inline Connector End View (C312) (1 Of 2)

G05181535

Courtesy of FORD MOTOR CO.

Fig 18: Inline Connector End View (C312) (2 Of 2)

G05181536

Courtesy of FORD MOTOR CO.

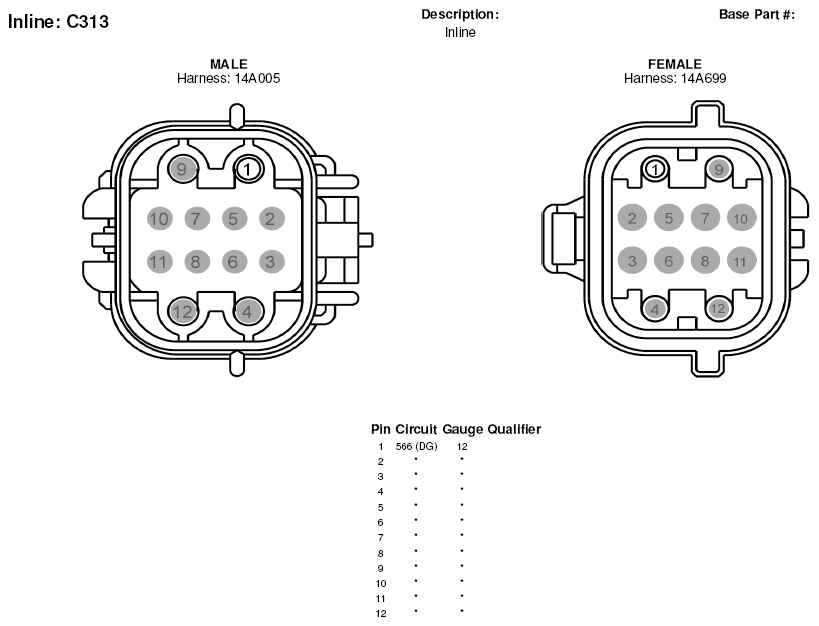

Fig 19: Inline Connector End View (C313)

G05181537

Courtesy of FORD MOTOR CO.

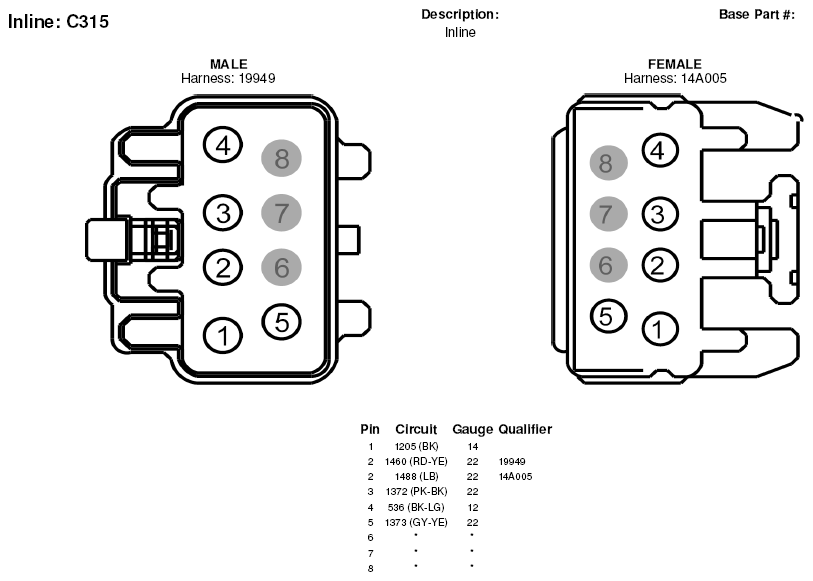

Fig 20: Inline Connector End View (C315)

G05181538

Courtesy of FORD MOTOR CO.

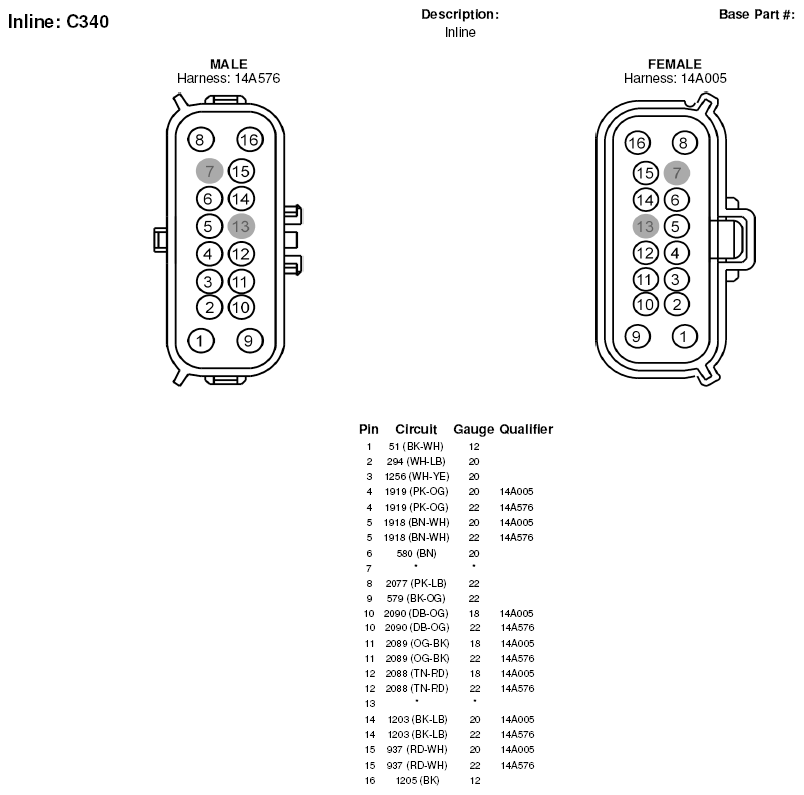

Fig 21: Inline Connector End View (C340)

G05181544

Courtesy of FORD MOTOR CO.

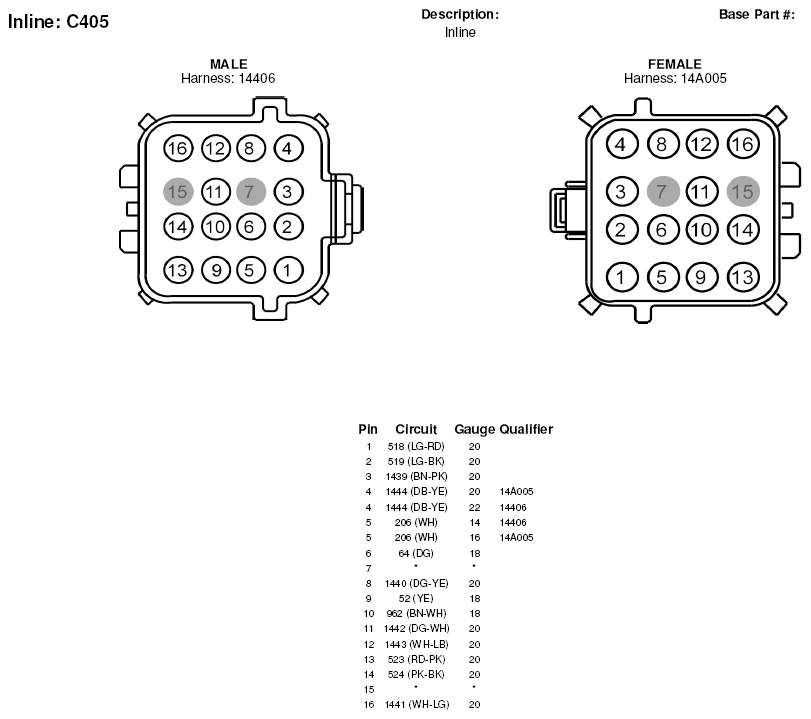

Fig 22: Inline Connector End View (C405)

G05181569

Courtesy of FORD MOTOR CO.

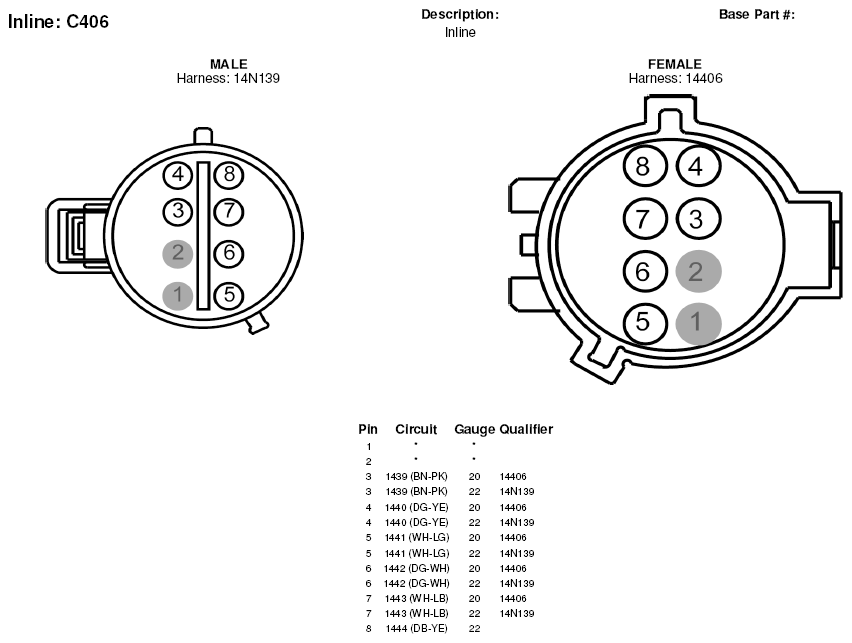

Fig 23: Inline Connector End View (C406)

G05181570

Courtesy of FORD MOTOR CO.

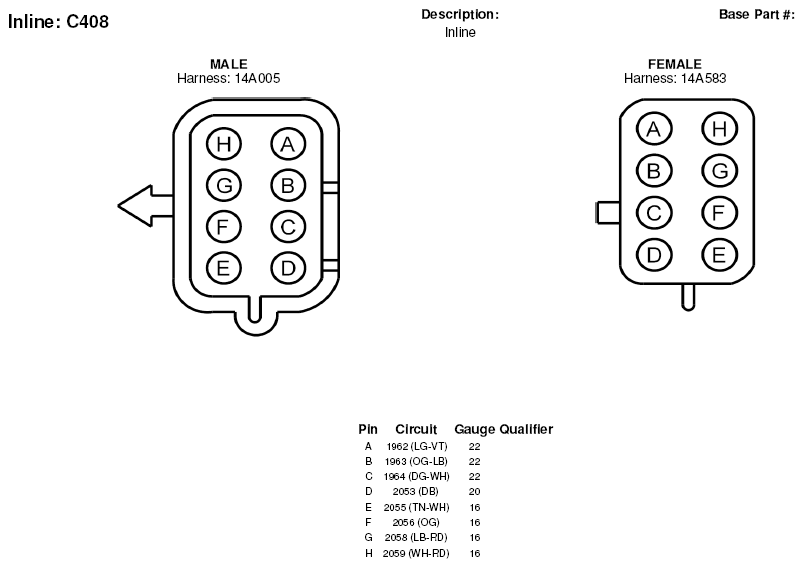

Fig 24: Inline Connector End View (C408)

G05181571

Courtesy of FORD MOTOR CO.

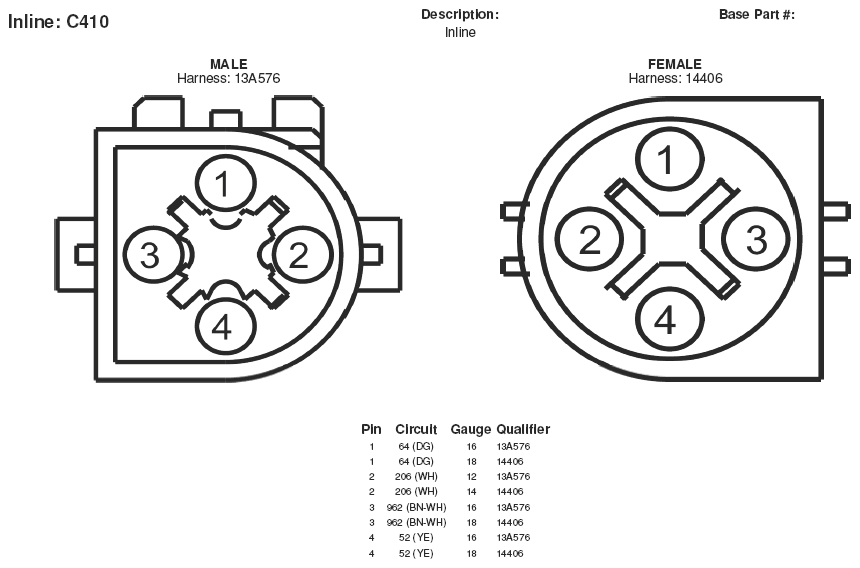

Fig 25: Inline Connector End View (C410)

G05225759

Courtesy of FORD MOTOR CO.

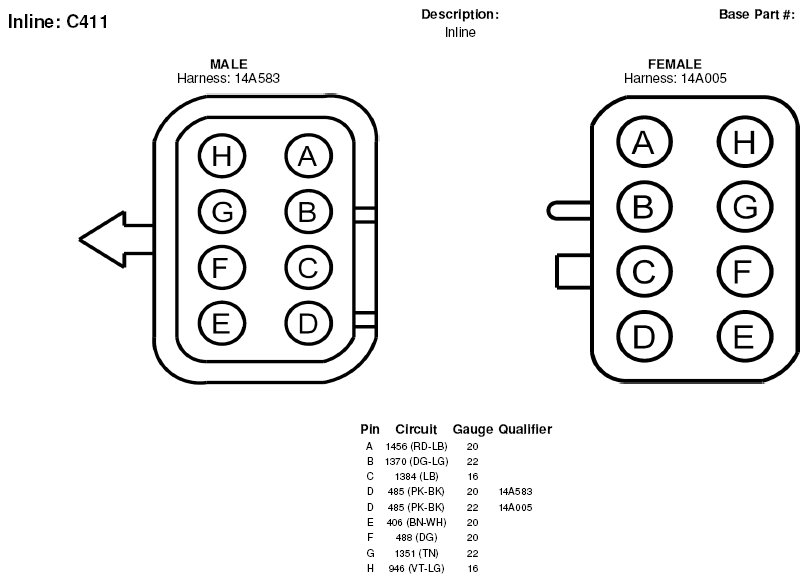

Fig 26: Inline Connector End View (C411)

G05181572

Courtesy of FORD MOTOR CO.

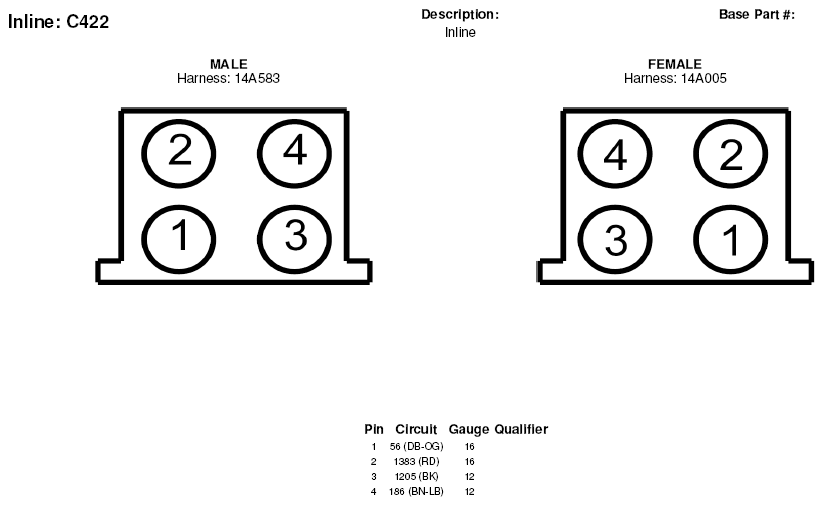

Fig 27: Inline Connector End View (C422)

G05181576

Courtesy of FORD MOTOR CO.

Fig 28: Inline Connector End View (C700)

G05181609

Courtesy of FORD MOTOR CO.

Fig 29: Inline Connector End View (C701)

G05181610

Courtesy of FORD MOTOR CO.

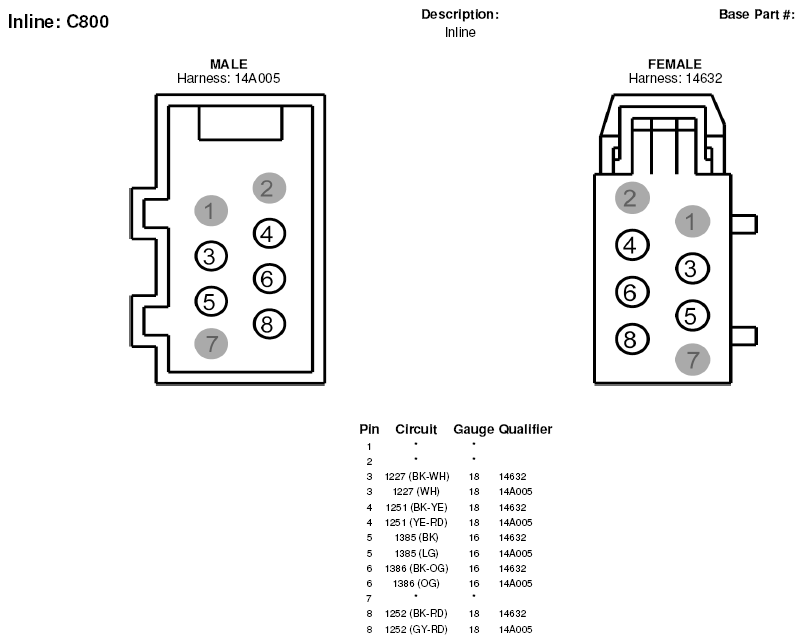

Fig 30: Inline Connector End View (C800)

G05181614

Courtesy of FORD MOTOR CO.

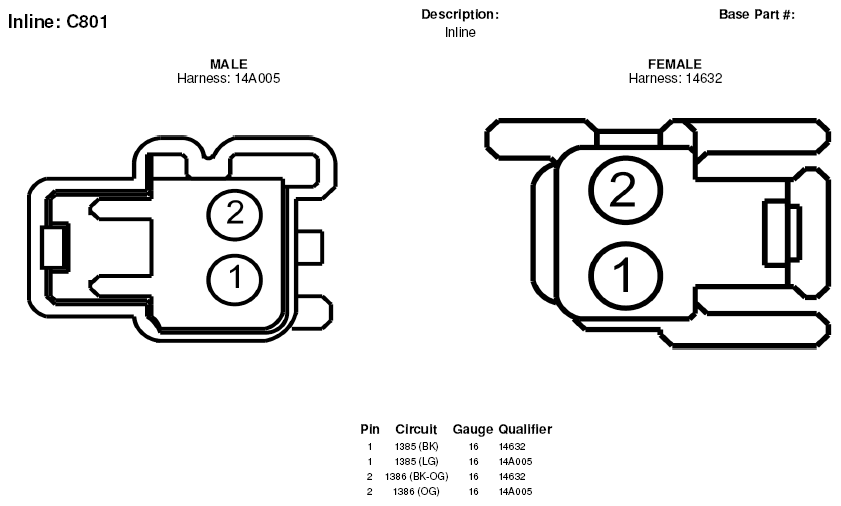

Fig 31: Inline Connector End View (C801)

G05181615

Courtesy of FORD MOTOR CO.

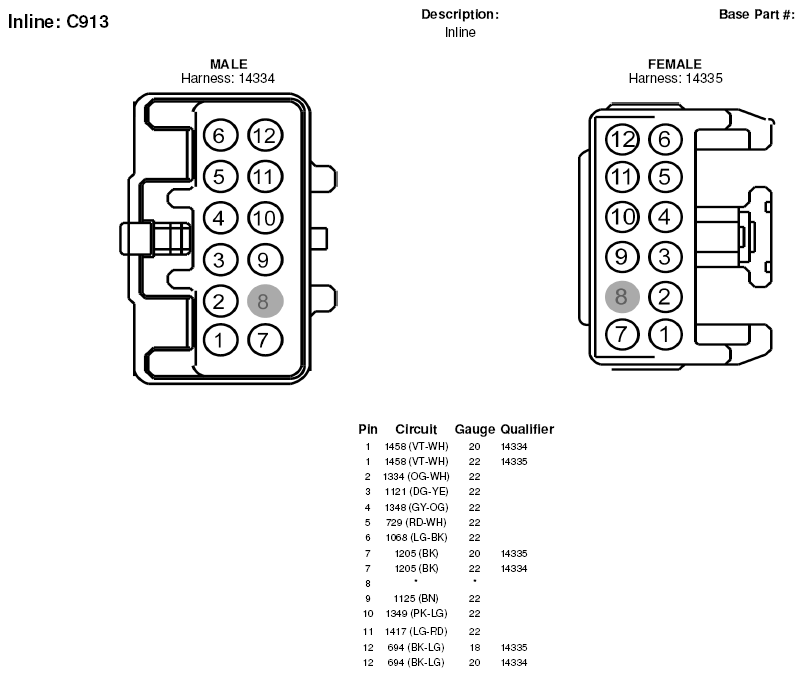

Fig 32: Inline Connector End View (C913)

G05181622

Courtesy of FORD MOTOR CO.

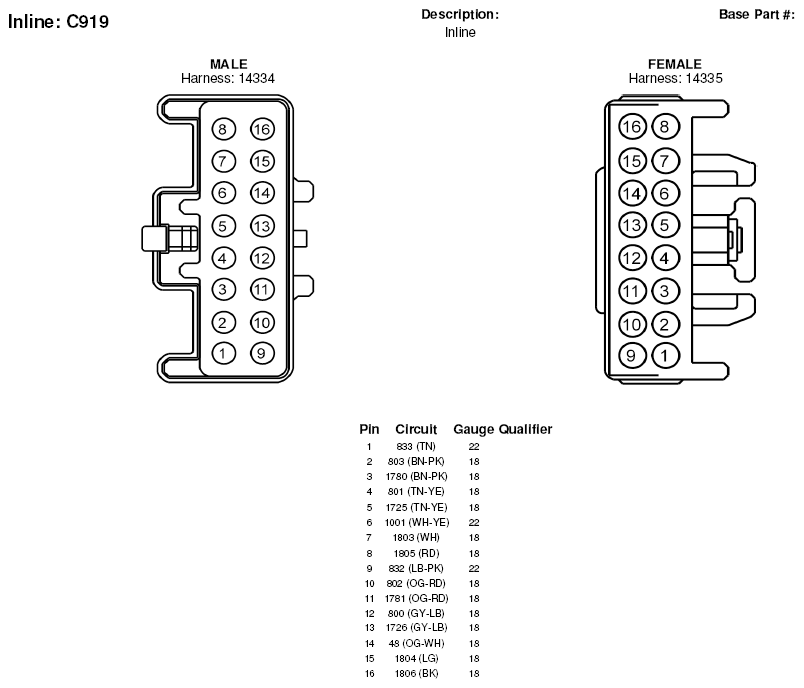

Fig 33: Inline Connector End View (C919)

G05181623

Courtesy of FORD MOTOR CO.

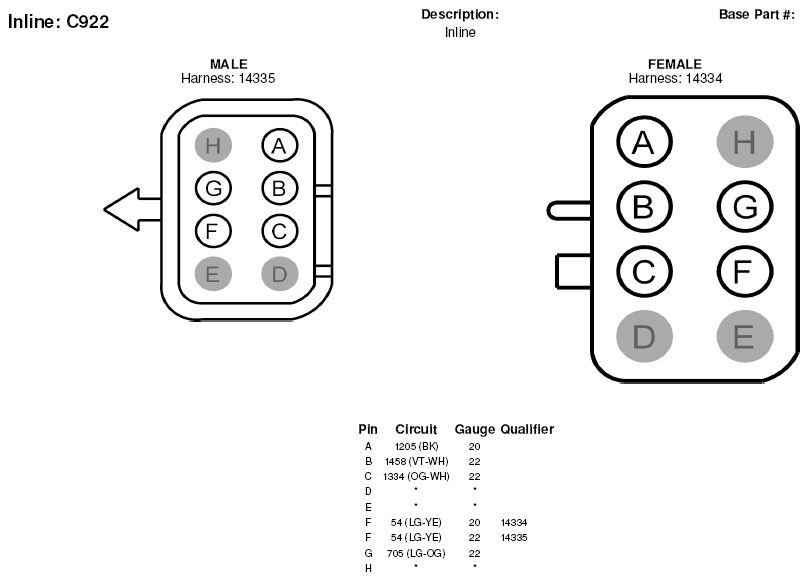

Fig 34: Inline Connector End View (C922)

G05181624

Courtesy of FORD MOTOR CO.

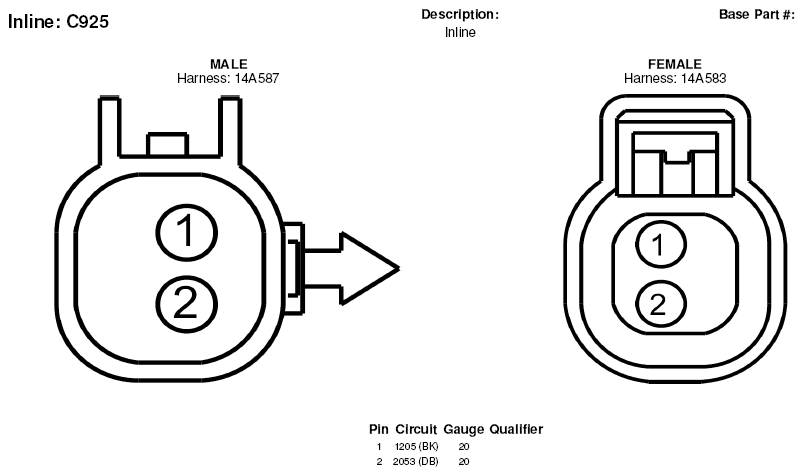

Fig 35: Inline Connector End View (C925)

G05181625

Courtesy of FORD MOTOR CO.

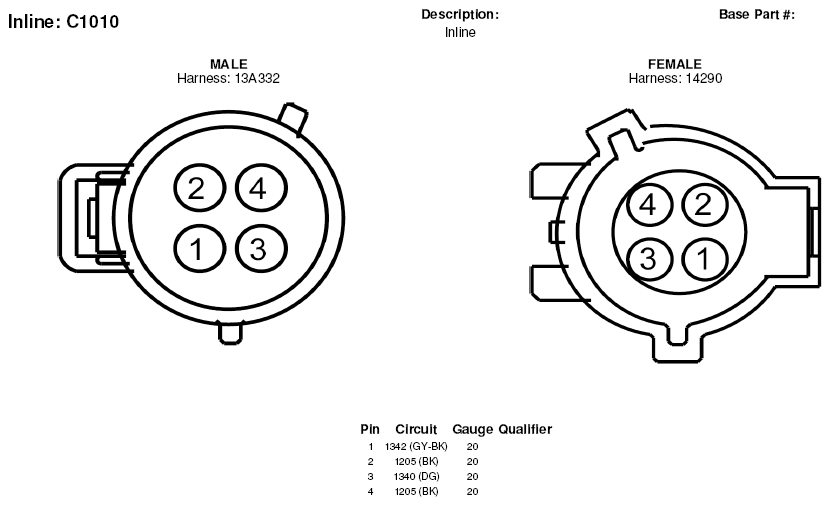

Fig 36: Inline Connector End View (C1010)

G05181638

Courtesy of FORD MOTOR CO.

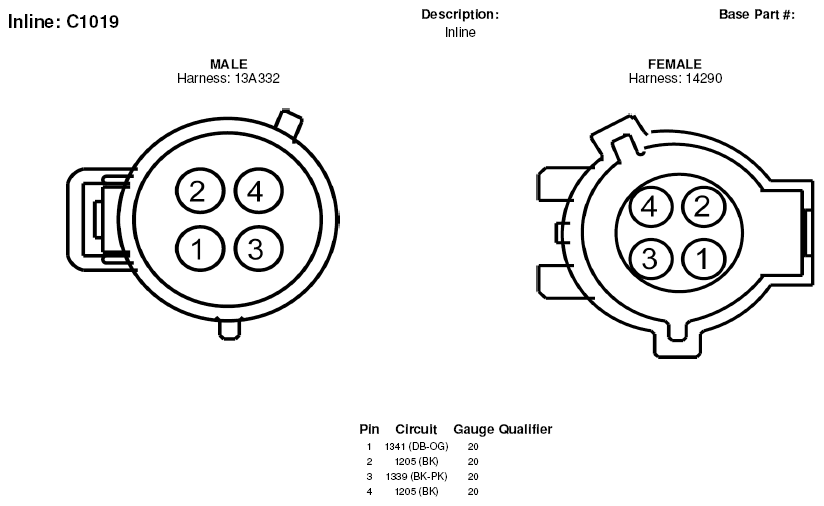

Fig 37: Inline Connector End View (C1019)

G05181639

Courtesy of FORD MOTOR CO.
