Heated Seat Module Connectors

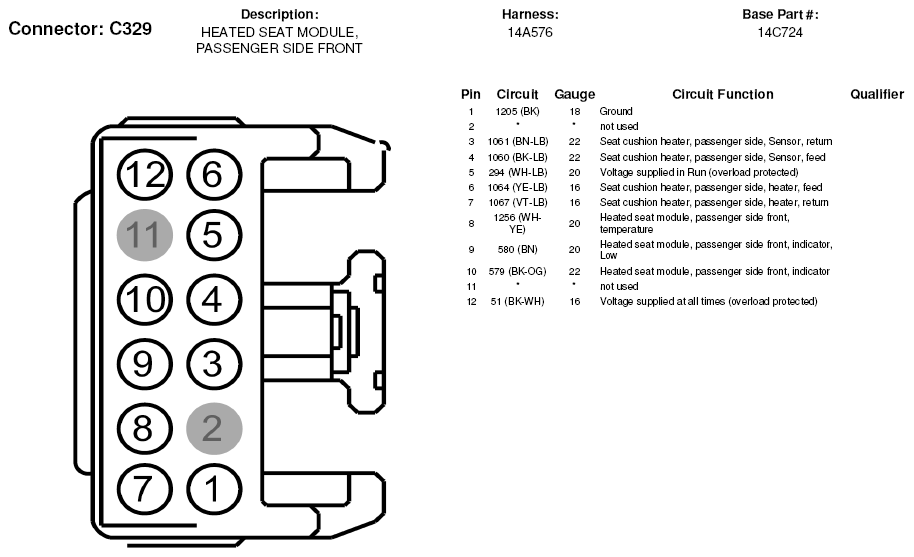

Fig 1: Heated Seat Module Connector End View (C329)

G05181540

Courtesy of FORD MOTOR CO.

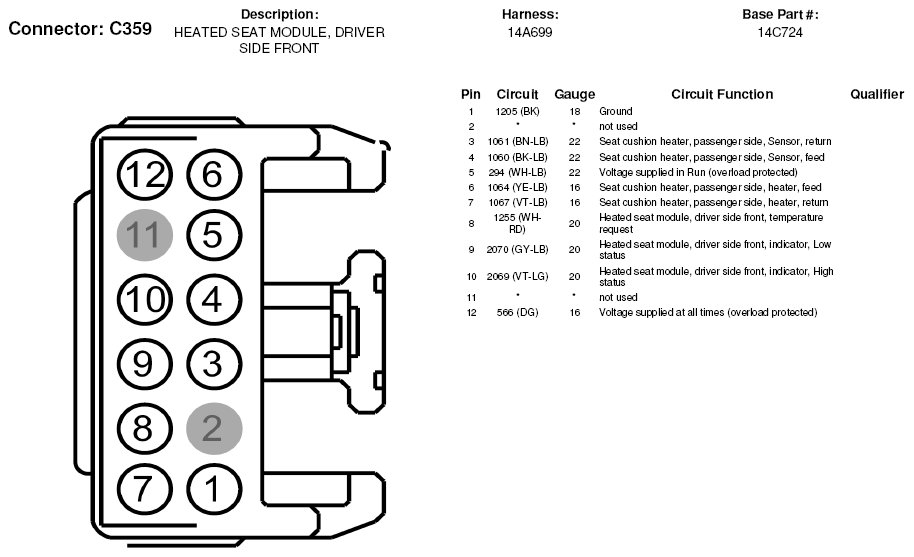

Fig 2: Heated Seat Module Connector End View (C359)

G05181552

Courtesy of FORD MOTOR CO.
