Door Lock Switch Connector

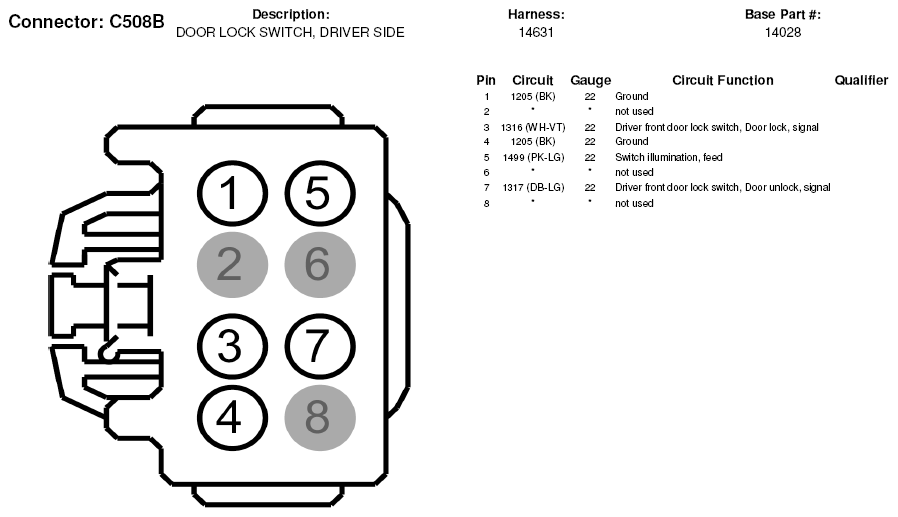

Fig 1: Door Lock Switch Connector End View (C508B)

G05181590

Courtesy of FORD MOTOR CO.

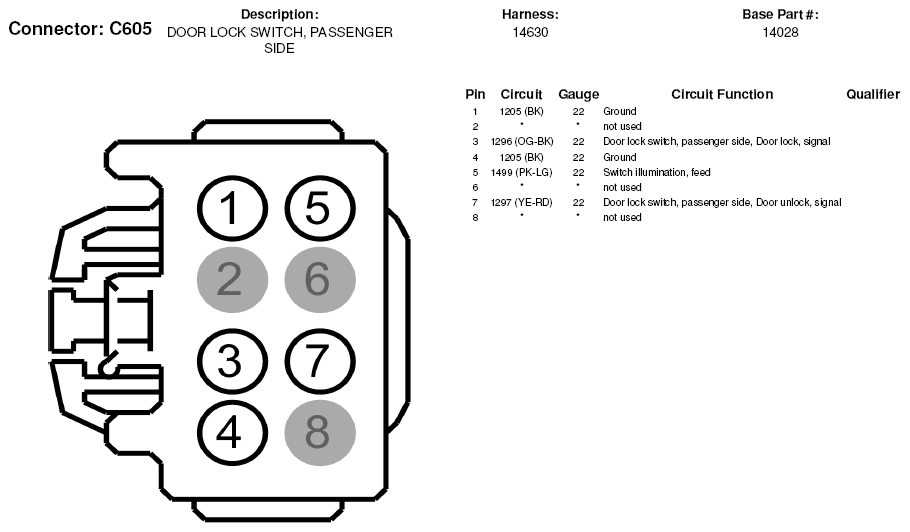

Fig 2: Door Lock Switch Connector End View (C605)

G05181602

Courtesy of FORD MOTOR CO.
