Digital Transmission Range Sensor Connector

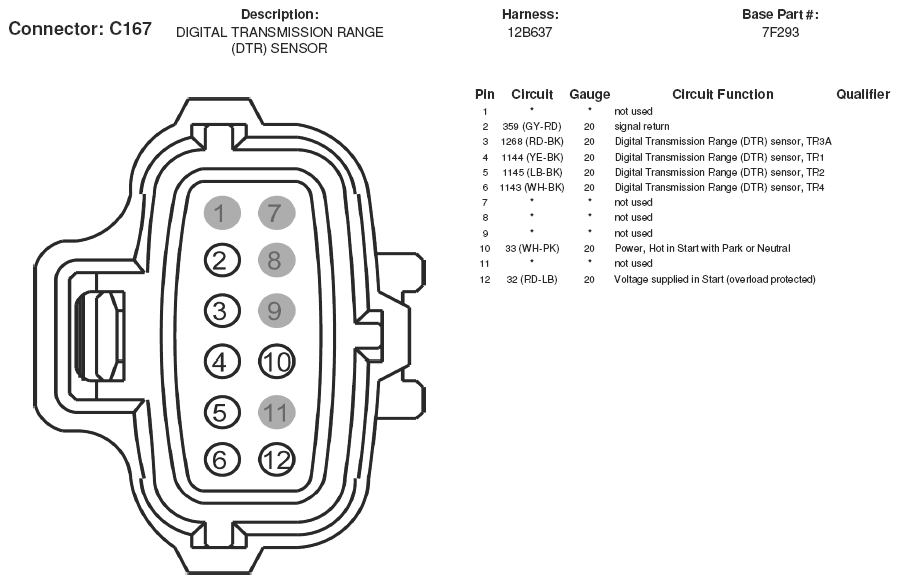

Fig 1: Digital Transmission Range Sensor Connector End View (C167)

G05181471

Courtesy of FORD MOTOR CO.
