Data Link Connector

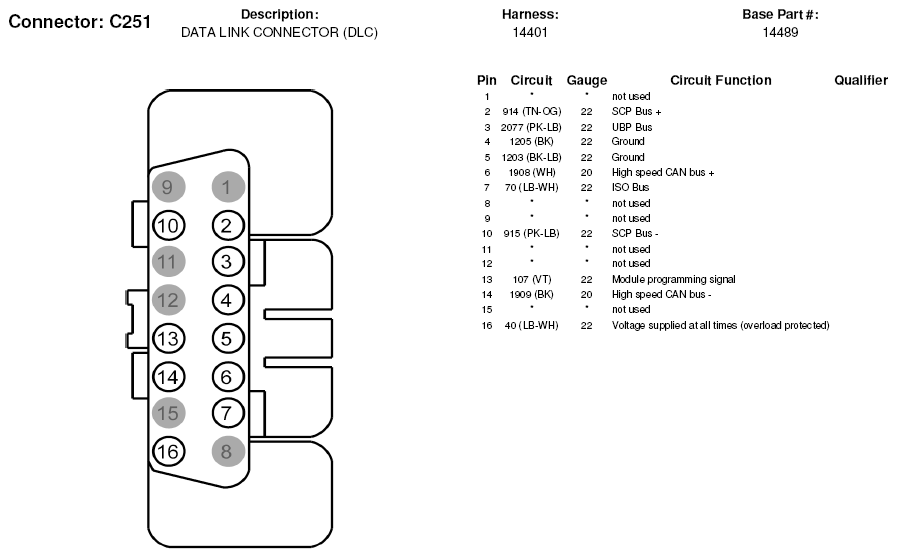

Fig 1: Data Link Connector Connector End View (C251)

G05181515

Courtesy of FORD MOTOR CO.
