OEM Connector End Views
>>
Connector Views
>>
Audio Unit Connectors
Audio Unit Connectors

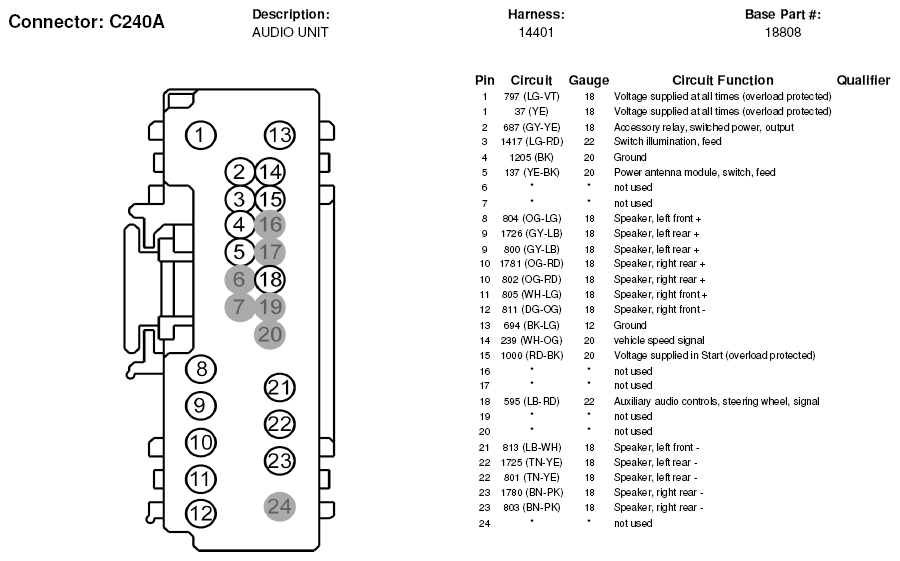

Fig 1: Audio Unit Connector End View (C240A)
Courtesy of FORD MOTOR CO.

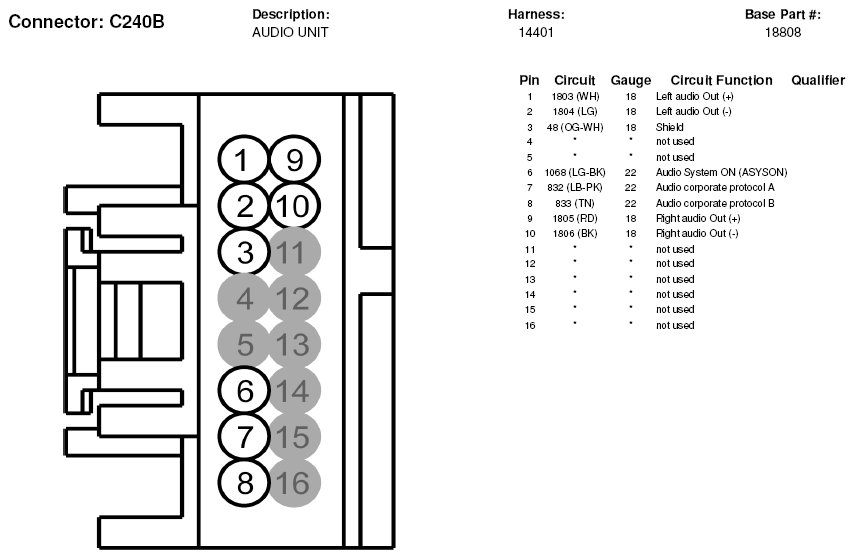

Fig 2: Audio Unit Connector End View (C240B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
