Anti-Lock Brake System Test Connector

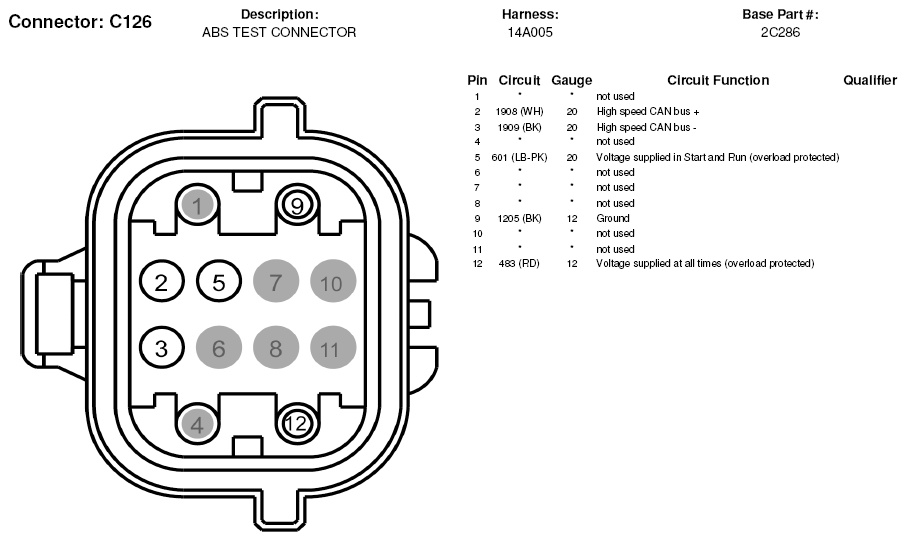

Fig 1: Anti-Lock Brake System Test Connector Connector End View (C126)

G05181449

Courtesy of FORD MOTOR CO.
