Seat - Third Row: Notes

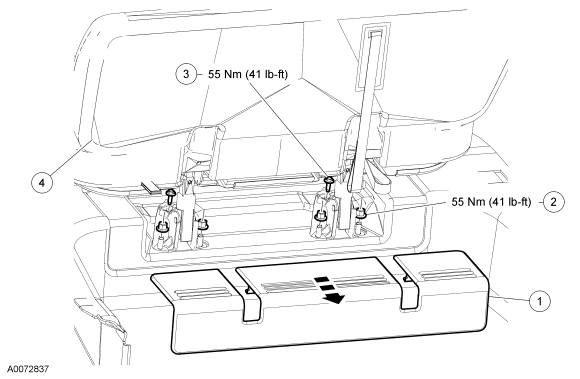

Fig 1: Exploded View Of Third Row Seat With Torque Specifications
GF0032683Courtesy of FORD MOTOR CO.
Item Part Number Description
1 61548 Third row seat fasteners cover
2 W520113 Third row seat riser-to-floor nut (4 required)
3 N806001 Third row seat riser-to-floor bolt (2 required)
4 600B01 Third row seat assembly
