Seat - Front: Notes

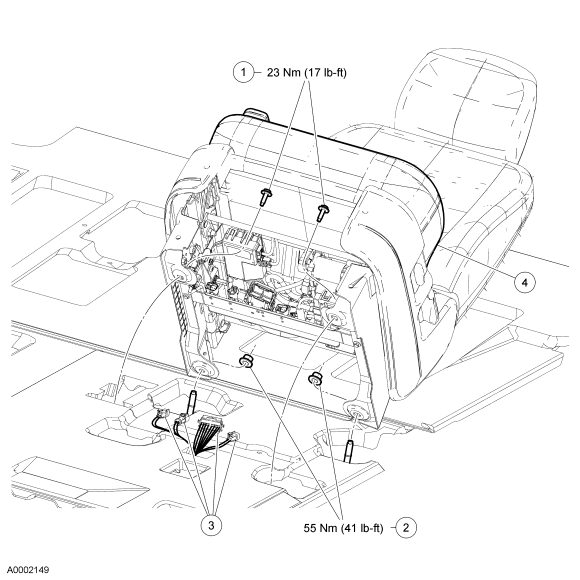

Fig 1: Exploded View Of Front Seat With Torque Specifications
GF0032657Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N806528 Seat track-to-floor front bolts and washers
2 N621945 Seat track-to-floor rear nuts and washers
3 14A699 LH/ 14A576 RH Electrical disconnects
4 60005 Driver seat
