Seat - Exploded View, Third Row

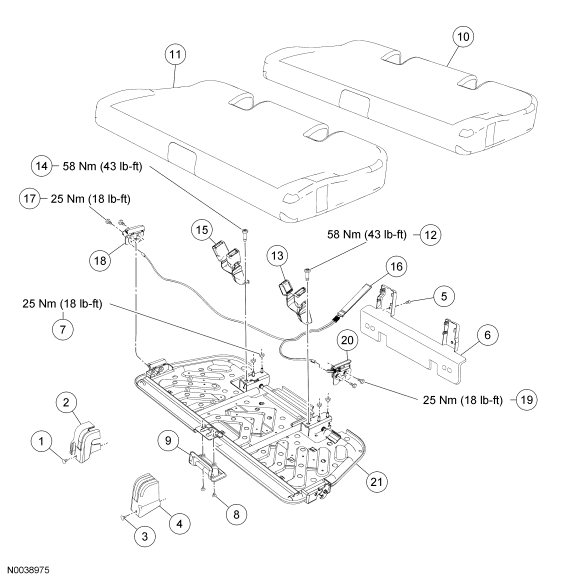

Fig 1: Exploded View Of Third Row Seat Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	807452	Pin-type retainer
2	613C78	RH front hinge cover
3	807452	Pin-type retainer
4	613C79	LH front hinge cover
5	-	Rear hinge cover screws (4 required) and pin-type retainers (2 required)
6	-	Rear hinge cover
7	-	Backrest-to-cushion nuts (4 required)
8	56902	Cushion handle screws
9	26656	Cushion handle
10	63804	Cushion trim cover
11	63840	Cushion foam pad
12	-	LH and mini buckle safety belt buckles bolt
13	600A39	LH and mini buckle safety belt buckles
14	01318	RH and center safety belt buckles bolt
15	600A38-B	RH and center safety belt buckles
16	-	Cushion latch cables
17	-	Cushion latch bolts (2 required)
18	67468	RH cushion latch
19	-	Cushion latch bolts (2 required)
20	67469	LH cushion latch
21	63160	Seat cushion frame

Fig 2: Exploded View Of Third Row Seat Backrest With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611A08	Head restraint (3 required)
2	613D58	Head restraint sleeves (3 required)
3	613D58	Head restraint sleeves (3 required)
4	600A96	Backrest pull-strap assembly
5	-	Screw (2 required)
6	66600	Backrest trim cover
7	66800	Backrest foam pad
8	613A38	Backrest frame
9	60508	Hardboard panel
