Seat - Exploded View, Front

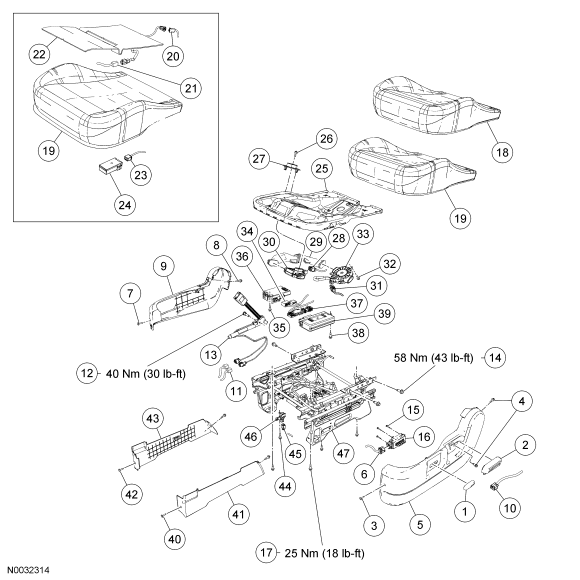

Fig 1: Exploded View Of Driver Front Seat Cushion With Torque Specifications
GF0032659Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14711 Seat control switch knob (if equipped)
2 624C13 Recliner handle cover
3 - LH front side shield screw
4 - LH side and rear side shield screws
5 62187 LH side shield
6 14A699 Connector (if equipped)
7 - RH front side shield screw
8 - RH rear side shield screw
9 62186 RH side shield
10 14A699 Seat side air bag electrical connector (if equipped)
11 14A699 Connectors
12 - Safety belt buckle pretensioner bolt
13 61203 Safety belt buckle pretensioner
14 - Backrest-to-seat track bolts (manual 3 required, power 4 required)
15 - Seat control switch screws (if equipped)
16 14A701 Seat control switch (if equipped)
17 - Seat track-to-cushion frame bolts (4 required)
18 62901 Seat cushion trim cover
19 632A23 Seat cushion foam pad
20 14A699 Connector (if equipped)
21 14A699 Connector (if equipped)
22 14D698 Cushion heater mat (if equipped)
23 14A699 Connector (if equipped)
24 14C724 Heated seat module (if equipped)
25 63100 Seat cushion frame
26 - Seat cushion thermo-electric device (TED) bezel screw (if equipped)
27 - Seat cushion TED bezel (if equipped)
28 14A699 Connector (if equipped)
29 - Climate controlled seat duct (if equipped)
30 18D508 Seat cushion TED (if equipped)
31 14A699 Connector (if equipped)
32 - Seat fan motor screws (3 required) (if equipped)
33 18D511 Seat fan motor (if equipped)
34 14A699 Connector (if equipped)
35 - Climate controlled seat module (CCSM) screw (2 required) (if equipped)
36 14C724 CCSM (if equipped)
37 14A699 Connector (if equipped)
38 - Driver seat module (DSM) screw (if equipped)
39 14C708 DSM (if equipped)
40 - Pin-type retainer (2 required)
41 58109 LH seat track riser shield
42 - Pin-type retainer (2 required)
43 58110 RH seat track riser shield
44 - Seat track position sensor screw
45 14A699 Connector
46 14B416 Seat track position sensor
47 61710 Seat track assembly

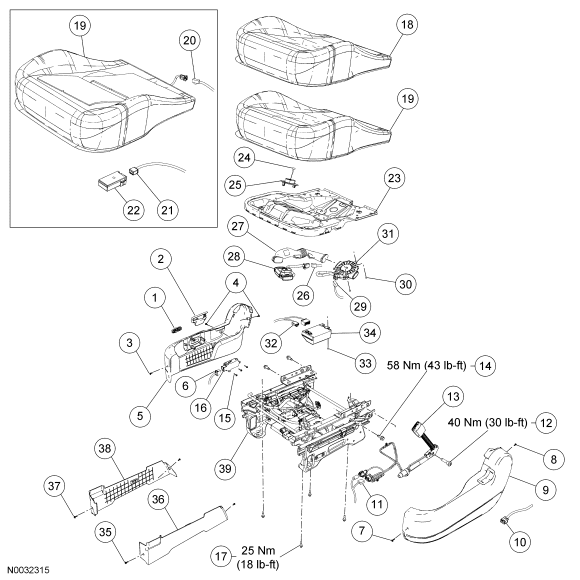

Fig 2: Exploded View Of Passenger Front Seat Cushion With Torque Specifications
GF0032660Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14711 Seat control switch knob (if equipped)
2 624C13 Recliner handle cover
3 - RH front side shield screw
4 - RH middle and rear side shield screws (2 required)
5 62186 RH side shield
6 14A576 Connector (if equipped)
7 - LH front side shield screw
8 - LH rear side shield screw
9 62187 LH side shield
10 14A576 Seat side air bag electrical connector (if equipped)
11 14A576 Connectors
12 - Safety belt buckle pretensioner bolt
13 61202 Safety belt buckle pretensioner
14 - Backrest-to-seat track bolts (manual 3 required, power 4 required)
15 - Seat control switch screws (if equipped)
16 14A701 Seat control switch (if equipped)
17 - Seat track-to-cushion frame bolts (4 required)
18 62900 Seat cushion trim cover
19 632A22 Seat cushion foam pad
20 14A576 Connector (if equipped)
21 14A576 Connector (if equipped)
22 14C724 Heated seat module (if equipped)
23 63100 Seat cushion frame
24 - Seat cushion thermo-electric device (TED) bezel screw (if equipped)
25 - Seat cushion TED bezel (if equipped)
26 14A576 Connector (if equipped)
27 - Climate controlled seat duct (if equipped)
28 18D508 Seat cushion TED (if equipped)
29 14A576 Connector (if equipped)
30 - Seat fan motor screws (3 required) (if equipped)
31 18D511 Seat fan motor (if equipped)
32 14A576 Connector (if equipped)
33 - Climate controlled seat module screws (2 required) (if equipped)
34 14A724 Climate controlled seat module (if equipped)
35 - Pin-type retainer (2 required)
36 58109 LH seat track riser shield
37 - Pin-type retainer (2 required)
38 58110 RH seat track riser shield
39 61710 Seat track assembly
NOTE: Low-back seat shown, hi-back seat similar.
NOTE: Driver side shown, passenger similar.
Fig 3: Exploded View Of Front Seat Backrest With Torque Specifications
GF0032661Courtesy of FORD MOTOR CO.
Item Part Number Description
1 611A09 Head restraint (if equipped)
2 31458 Assist handle screw cover (if equipped) (2 required)
3 - Assist handle screw (if equipped) (2 required)
4 26666 Assist handle (if equipped)
5 613D58 Head restraint sleeve (if equipped)
6 613D58 Head restraint sleeve (if equipped)
7 67060 Armrest bolt cover
8 91074 Armrest bolt
9 91075 Armrest bolt spring washer
10 84002 Armrest
11 617B70 Lumbar knob (if equipped)
12 64417 Backrest trim cover
13 64810 Backrest foam pad
14 14A699 LH/ 14A576 RH Connector (if equipped)
15 14D696 Backrest heater mat (if equipped)
16 N620480-S Seat side air bag nuts (if equipped)
17 611D11 Seat side air bag module (if equipped)
18 - LH inner shield screw
19 58401 LH inner shield
20 - RH inner shield screw
21 - RH inner shield
22 14A699 LH/ 14A576 RH Connector (if equipped
23 18D508 Backrest thermo-electric device (TED) (if equipped)
24 18D507 Climate controlled seat duct (if equipped)
25 14A301 TED retainer clip (if equipped)
26 617A45 Manual lumbar assembly (if equipped)
27 - Armrest stop screw
28 61019 Backrest frame assembly
  1. For additional information, refer to the following procedures.
