Seat Backrest - Front: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

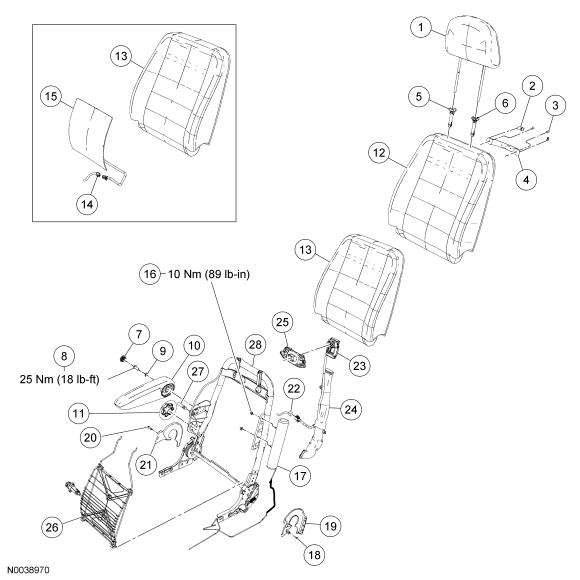

NOTE:
Low-back seat shown, hi-back seat similar.
NOTE:
Driver side shown, passenger side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A09 | Head restraint (if equipped) |
| 2 | 31458 | Assist handle screw cover (if equipped) (2 required) |
| 3 | - | Assist handle screw (if equipped) (2 required) |
| 4 | 26666 | Assist handle (if equipped) |
| 5 | 613D58 | Head restraint sleeve (if equipped) |
| 6 | 613D58 | Head restraint sleeve (if equipped) |
| 7 | 67060 | Armrest bolt cover |
| 8 | 91074 | Armrest bolt |
| 9 | 91075 | Armrest bolt spring washer |
| 10 | 84002 | Armrest |
| 11 | 617B70 | Lumbar knob (if equipped) |
| 12 | 64417 | Backrest trim cover |
| 13 | 64810 | Backrest foam pad |
| 14 | 14A699 LH/ 14A576 RH | Connector (if equipped) |
| 15 | 14D696 | Backrest heater mat (if equipped) |
| 16 | N620480 | Seat side air bag nuts (if equipped) |
| 17 | 611D11 | Seat side air bag module (if equipped) |
| 18 | - | LH inner shield screw |
| 19 | 58401 | LH inner shield |
| 20 | - | RH inner shield screw |
| 21 | - | RH inner shield |
| 22 | 14A699 LH/ 14A576 RH | Connector (if equipped) |
| 23 | 18D508 | Backrest thermo-electric device (TED) (if equipped) |
| 24 | 18D507 | Climate controlled seat duct (if equipped) |
| 25 | 14A301 | TED retainer clip (if equipped) |
| 26 | 617A45 | Manual lumbar assembly (if equipped) |
| 27 | - | Armrest stop screw |
| 28 | 61019 | Backrest frame assembly |
