Liftgate Latch: Notes

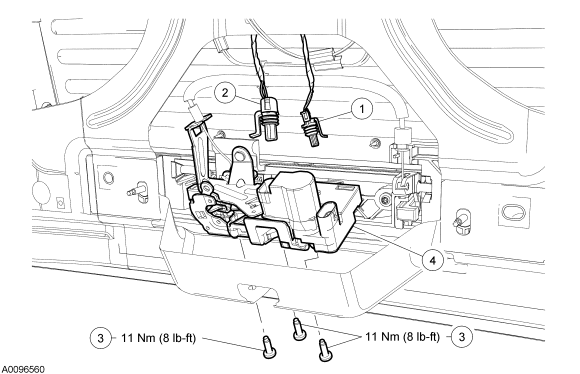

Fig 1: Exploded View Of Liftgate Latch With Torque Specifications
GF0032800Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Liftgate latch electrical connector (part of 14A583)
2 - Liftgate latch electrical connector (part of 14A583)
3 W505583 Liftgate latch screws (3 required)
4 43150 Liftgate latch
