Keyless Entry Keypad: Notes

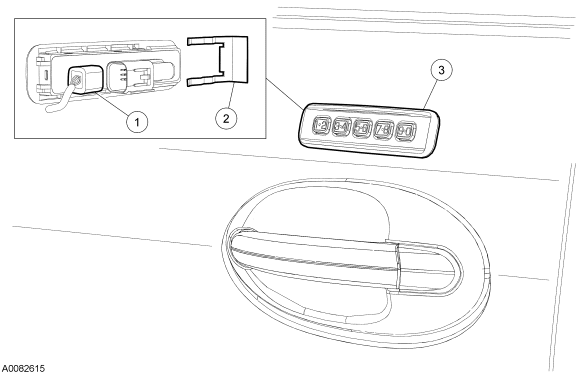

Fig 1: Exploded View Of Keyless Entry Keypad
GF0032806Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Keyless entry keypad electrical connector (part of 14631)
2 14A667 Keyless entry keypad clip
3 14A626 Keyless entry keypad
