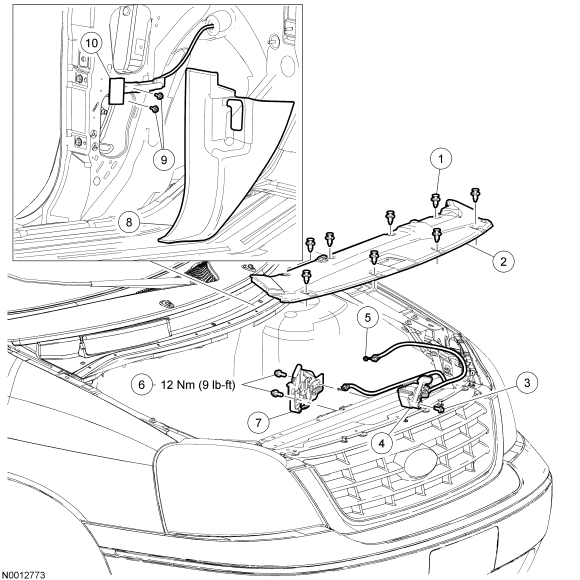

Hood Latch and Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | N807389 | Upper radiator sight shield pin-type retainers (8 required) |
| 2 | W506401 | Upper radiator sight shield |
| 3 | W500202-S | Secondary hood latch release handle bolt |
| 4 | 16916 | Secondary hood latch release handle and cable |
| 5 | - | Secondary hood latch release cable (part of 16916) |
| 6 | N808727 | Hood latch bolts (2 required) |
| 7 | 16700 | Hood latch |
| 8 | 1702349 | A-pillar lower trim panel |
| 9 | N8062222-S | Primary hood latch release handle screws (2 required) |
| 10 | 16916 | Primary hood latch release handle and cable |
- For additional information, refer to the following procedures.
