Home >> Mercury >> 2007 >> Monterey >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Handles, Locks, Latches And Entry Systems >> Removal And Installation >> Door Lock Control Switch >> Notes

Door Lock Control Switch: Notes

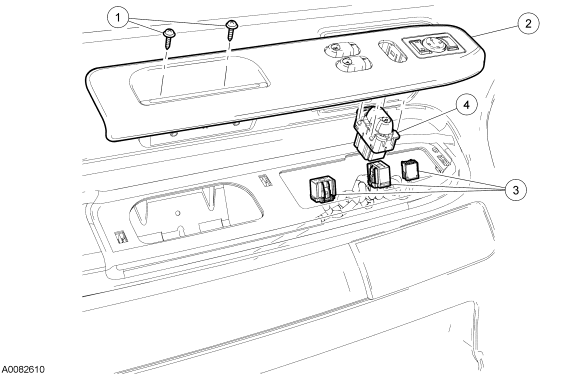

Fig 1: Exploded View Of Door Lock Control Switch
GF0032805Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W56904-S424 Front door switch plate screws (2 required)
2 14A665 Front door switch plate
3 - Front door switch plate electrical connector (part of 14631)
4 14028 Door lock control switch
