Home >> Mercury >> 2007 >> Monterey >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector Views >> Power Liftgate Open/Close Switch Connector

Power Liftgate Open/Close Switch Connector

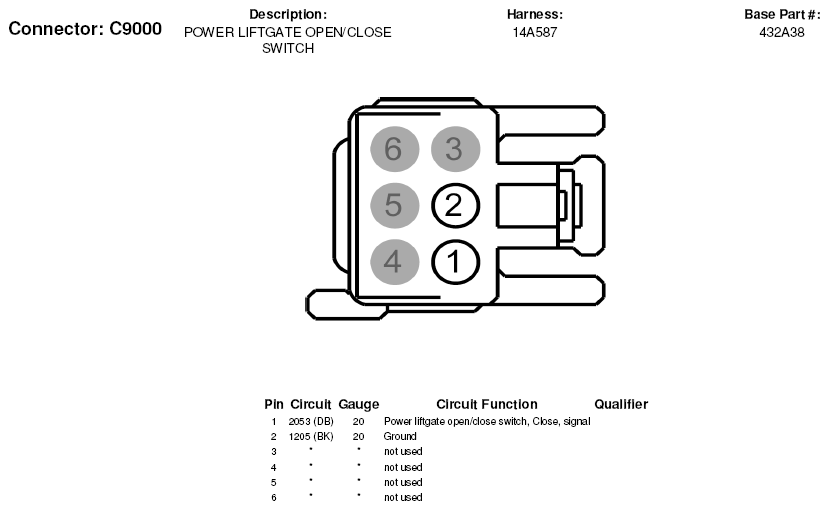

Fig 1: Power Liftgate Open/Close Switch Connector End View (C9000)

G05181750

Courtesy of FORD MOTOR CO.
