Driver Memory Seat Horizontal Connector

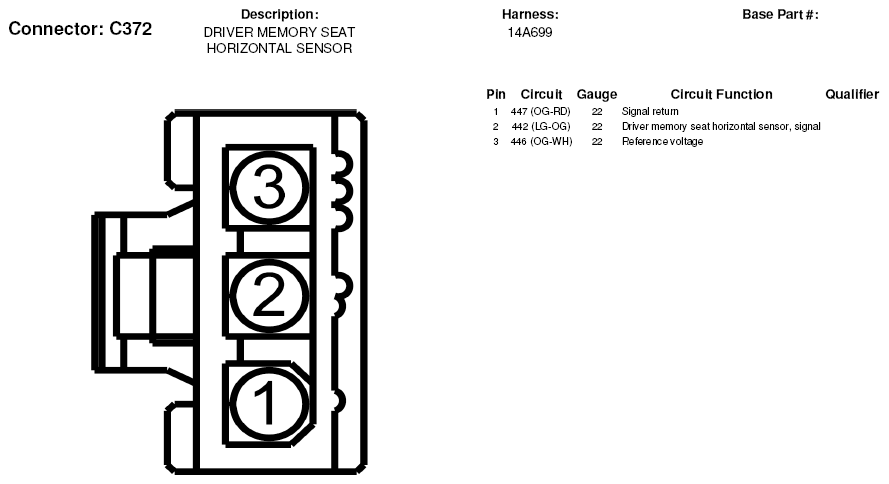

Fig 1: Driver Memory Seat Horizontal Connector End View (C372)

G05181557

Courtesy of FORD MOTOR CO.
