Intake Manifold Runner Control (IMRC) Actuator: Notes

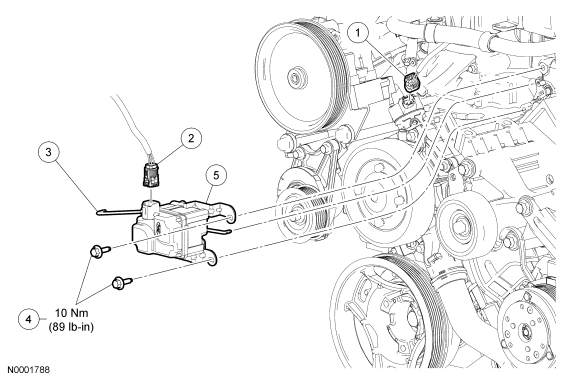

Fig 1: Exploded View Of Intake Manifold Runner Control IMRC Actuator With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Camshaft position (CMP) sensor electrical connector (part of 12B637)
2	14489	Intake manifold runner control (IMRC) actuator electrical connector (part of 12B637)
3	-	IMRC actuator rod (2 required) (part of 9J559)
4	N806549-S	IMRC actuator-to-intake manifold bolts (3 required)
5	9J559	IMRC actuator
