Powertrain Control Module Connectors

Fig 1: Powertrain Control Module Connector End View (C175) (1 Of 3)
G05181474Courtesy of FORD MOTOR CO.
Fig 2: Powertrain Control Module Connector End View (C175) (2 Of 3)
G05181475Courtesy of FORD MOTOR CO.

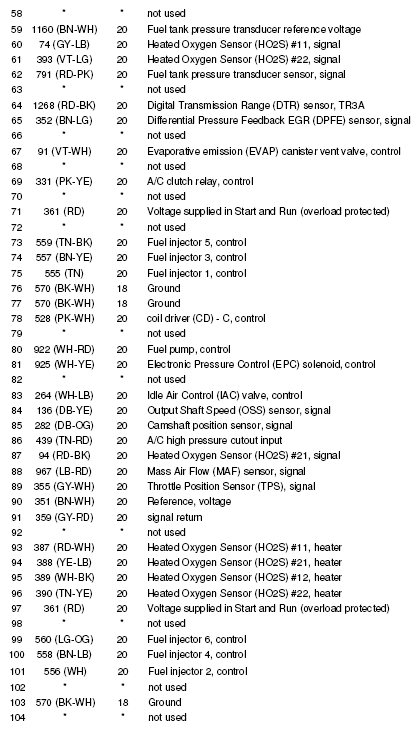

Fig 3: Powertrain Control Module Connector End View (C175) (3 Of 3)
G05181476Courtesy of FORD MOTOR CO.
