Passive Antitheft Transceiver Module Connector

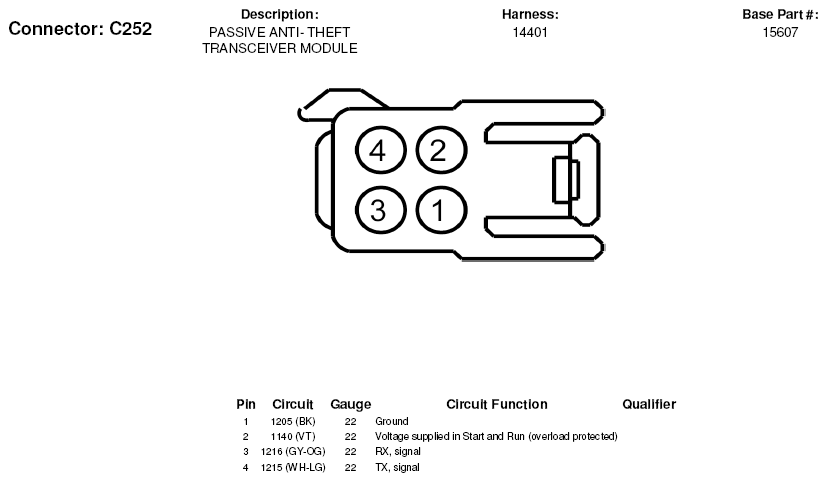

Fig 1: Passive Antitheft Transceiver Module Connector End View (C252)

G05181516

Courtesy of FORD MOTOR CO.
