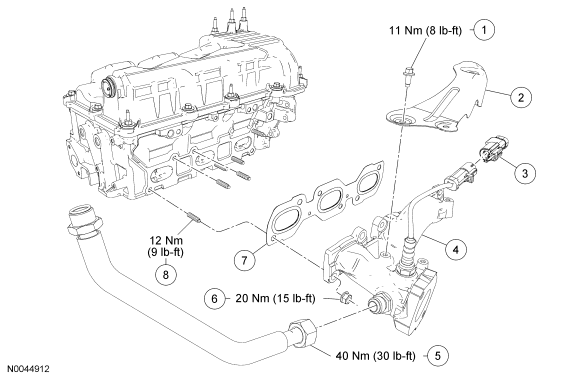

Exhaust Manifold - RH: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | W701130 | RH exhaust manifold heat shield bolts (2 required) |
| 2 | 9A462 | RH exhaust manifold heat shield |
| 3 | 14A464 | Heated oxygen sensor (HO2S) electrical connector (part of 12B637) |
| 4 | 9430 | RH exhaust manifold |
| 5 | - | Exhaust gas recirculation (EGR) system module tube fitting nut (part of 9D477) |
| 6 | W701706 | RH exhaust manifold nut (6 required) |
| 7 | 9448 | RH exhaust manifold gasket |
| 8 | W701732 | RH exhaust manifold stud (6 required) |
