Exhaust Manifold - LH: Notes

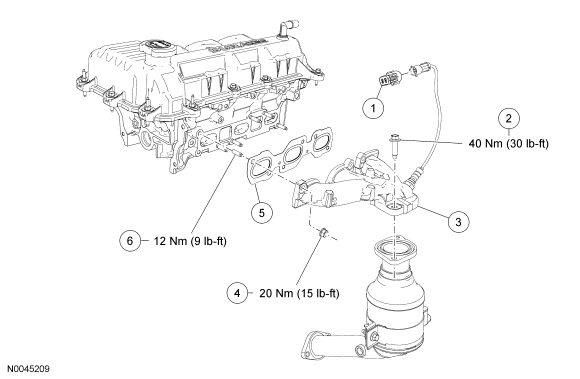

Fig 1: Exploded View Of Left Exhaust Manifold With Torque Specifications
GF0017073Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Heated oxygen sensor (HO2S) electrical connector (part of 12B637)
2 W709982 LH exhaust manifold-to-catalytic converter bolt (2 required)
3 9431 LH exhaust manifold
4 W701706 LH exhaust manifold nut (6 required)
5 9448 LH exhaust manifold gasket
6 W701732 LH exhaust manifold stud (6 required)
